Mazda 3-rotor, rear-wheel-drive flagship, and how to make it happen

Mazda has filed a patent application for a 3-rotor hybrid drivetrain configured for a rear-wheel-drive layout. Obviously, if built, it would be the first rotary-engined car since the 2012 death of the RX-8, and the first triple-rotor production car since the JC Eunos Cosmo ended production in 1995. Just as obviously, though, it would totally buck prevailing market trends. The rotary, great as it was, was never as clean or as thrifty as a piston engine, and even those are phasing out. What’s going on in Hiroshima?

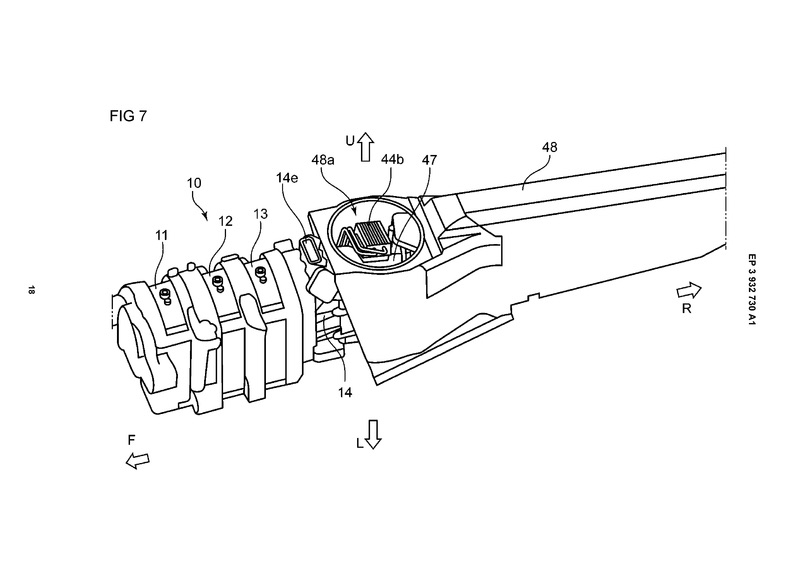

The application was filed to the European patent office, where it was discovered by Japanese blogger taku2-4885. The analysis shows a transmission tunnel that seems to closely resemble the one in the flagship sports coupe patent submitted to Japan’s patent office last August. It also clearly shows three rotor housings sandwiched together in a triple-rotor configuration.

Another illustration in the filing depicts a torque tube enclosing a driveshaft, which is connected to a transaxle sending power to the rear wheels. A 48-volt hybrid system is mated to the rotary engine, likely a PHEV setup.

A diagram shows that the hybrid system will also have two in-wheel electric motors driving the front wheels, which match previous patent filings. This will allow for an AWD system that incorporates some kind of torque vectoring, like spinning the outside wheel faster for improved grip, or perhaps an even more finely tuned G-Vectoring Control system. Finally, a cooling system illustration details a slant-mounted radiator for more surface area and improved cooling. It’s as serious a driver’s car as we can think of in this day and age.

Our sources at Mazda have said that they’ve never stopped developing the rotary engine. As recently as 2019, a rotary-engined test mule has been spotted at the Nürburgring disguised as an RX-8. However, they’ll only bring it to market if market forces align, and we don’t mean whether internal combustion engines live or die. We mean whether the market will bear Nissan GT-R prices for a car with a Mazda badge. So far, the answer is far from certain.

In the meantime, Mazda has bigger fish to fry. The world is becoming a sprawling, confusing mosaic of emissions and electrification rules. In some regions Mazda will essentially be forced out of the market if they don’t offer some kind of electric vehicle.  They’re already buying expensive carbon credits from companies like Tesla to offset their all-petrol fleet. That’s why Mazda is frantically trying to put electric vehicles on the road, even if they’re as half-baked as the non-rotary MX-30 or rebadged Toyotas.

Assuming the fairly significant problems above — as well as others, like the fact that Mazda is still tiny and the brand isn’t even on most car shoppers’ radars — can be solved, the only way a rotary-powered car like this will make it is if it’s a PHEV. A PHEV’s ability to run on pure electric power for short trips will allow a car like this to enter some European cities, which, by the time this comes out, have chosen to bar gasoline-powered altogether cars from their streets.

At the same time, a PHEV will be able to supplement the petrol engine with additional power and give the car some truly phenomenal range. Think 50+ mpg. It solves the issue of being stranded without a charging station in the middle of nowhere and lets the car be a true driving partner. Imagine being able to drive hard for 8 hours straight without needing a refuel. It’ll truly allow you to explore the backroads, which dovetails perfectly with Mazda’s brand image and mission statement of hashiru yorokobi, or “joy from driving”.

We’re not trying to get your hopes up. Each day that passes, the window for such a car gets a little bit smaller. That’s why the patent is, in a likelihood, just a placeholder. If by some stroke of insane luck the planets align and Mazda is able to move forward with the rotary flagship, this is what it has planned. We’re getting  peek into the company’s vision board. It probably won’t happen, but other companies don’t even file patents like this anymore. At least Mazda dares to dream.
