SHOP LIFE: LAX Wheel Refinishing

LAX Wheel Refinishing 03

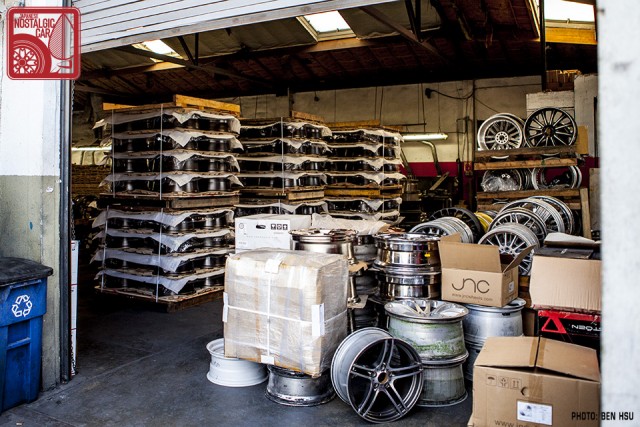

In a nondescript warehouse on the edge of Boyle Heights is one of the best kept secrets for a crucial part of Los Angeles life: the rim. The aftermarket wheel is an inalienable part of SoCal culture, more important than the wristwatch or necktie to the official LA wardrobe, and yet the region’s cratered roads are a hellscape for alloy circles. For years, LAX Wheel Refinishing has quietly kept the wheels of LA turning, so to speak, to the tune of 2,000 a day. We recently got a rare peek behind the scenes of this impressive operation.

LAX Wheel Refinishing 01

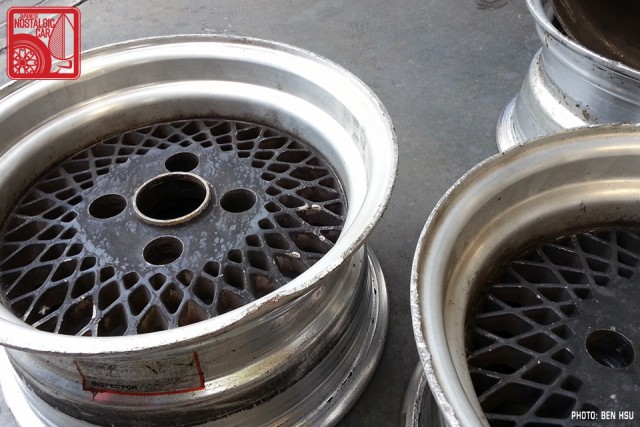

It all started with a set of well-worn Enkei 92 wheels rescued from a junked SR5 AE86. Though Enkei recently re-released several of their classic styles, owners of vintage Japanese wheels often don’t have the option of going out and buying a new set.

LAX Wheel Refinishing 02

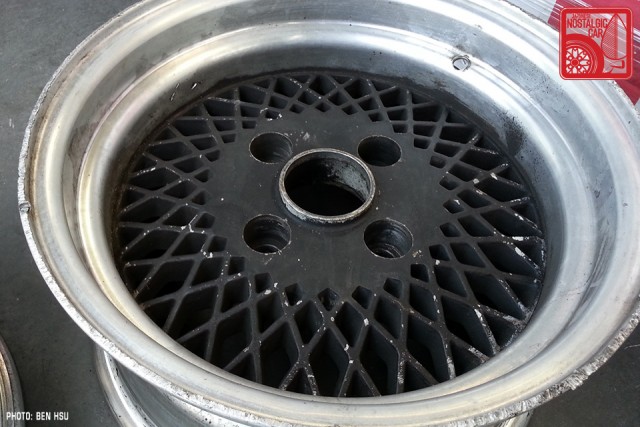

These particular Enkeis had endured decades of curb rash, pitting and bending. They’d also been repainted once or twice by the previous owner, but we wanted to restore them to the shining gold faces that made the 92s so distinctive.

LAX Wheel Refinishing 04

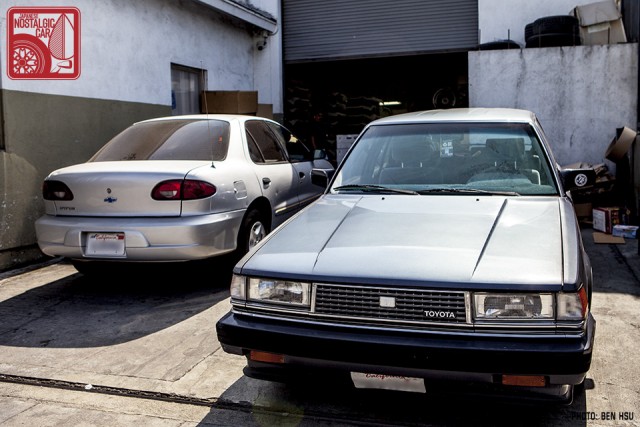

We loaded them up into the ol’ JNC wagon and rolled down to the industrial edge of LA. The area sits just on the “good” side of a little-known, lawless expanse right outside the city limits, an area so seedy that it inspired the nihilistic underworld of True Detective.

LAX Wheel Refinishing 60

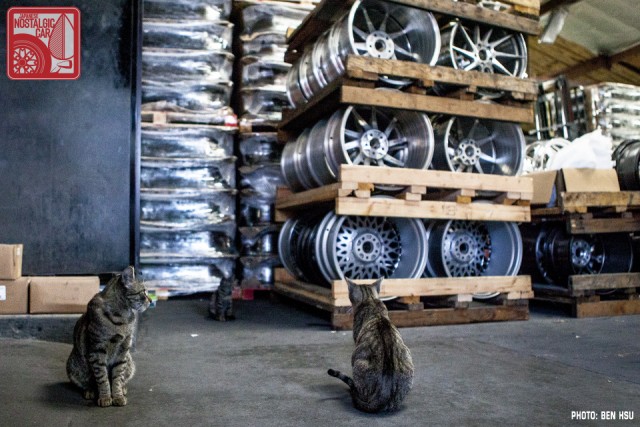

The main entrance, where wheels are dropped off, has a barely visible sign and is easy to miss. Just look for the open garage door filled with stacks upon stacks of rims (lead photo), or follow one of the dozen or so stray cats that LAX has lovingly adopted and neutered.

LAX Wheel Refinishing 06

For restorations like ours, the first step is stripping off the existing finish. If a rush job is required, aircraft paint remover is brushed onto the surface. It removes paint within a few minutes, but requires a vigilant eye to make sure every crevice has been reached.

For standard jobs, the wheels are simply submerged into a chemical bath for a couple of hours. After that, the wheels are sandblasted to remove any stubborn remnants.

LAX Wheel Refinishing 13LAX Wheel Refinishing 21

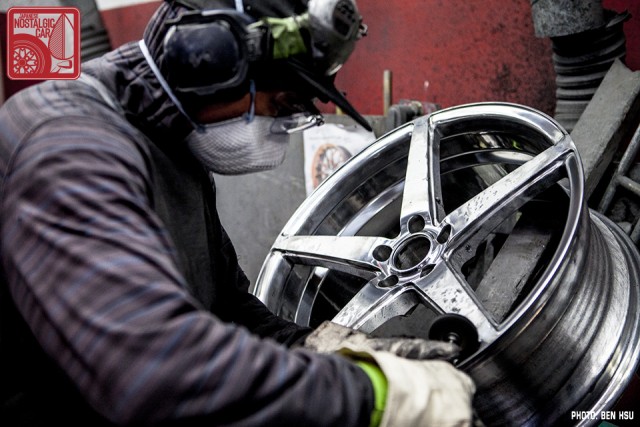

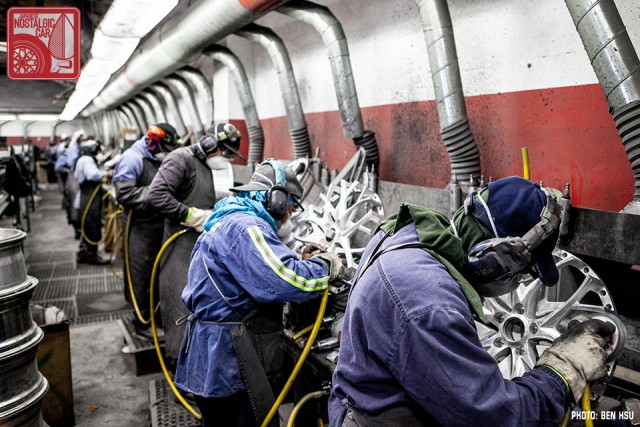

The wheels are then cleaned and hand-buffed and polished. Dozens of workstations process rims of various shapes and sizes nonstop throughout the day. Because of each wheel’s different designs, they have to be done by hand to make sure every surface has been touched.

LAX Wheel Refinishing 18LAX Wheel Refinishing 23

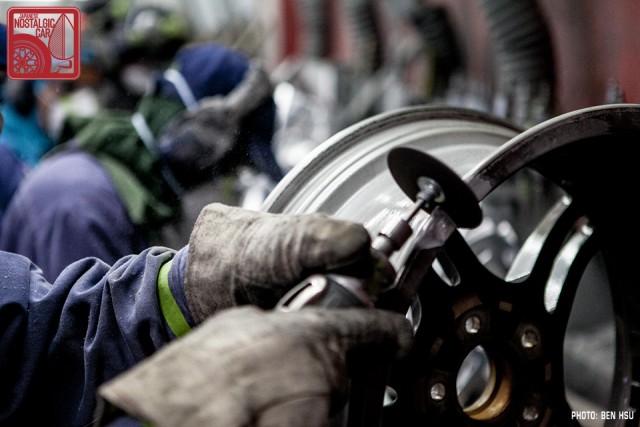

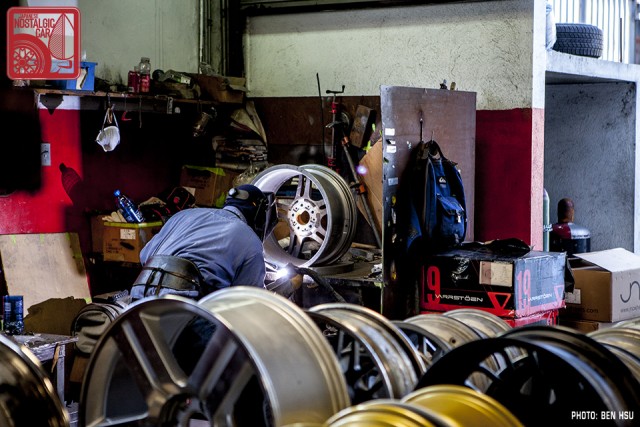

Often, damage and microscopic cracks are revealed only once the wheel is bare. The wheels are put on a machine to test the balance and integrity of the rim, and if any imperfections are detected they are cut out and new material welded in.

LAX Wheel Refinishing 25

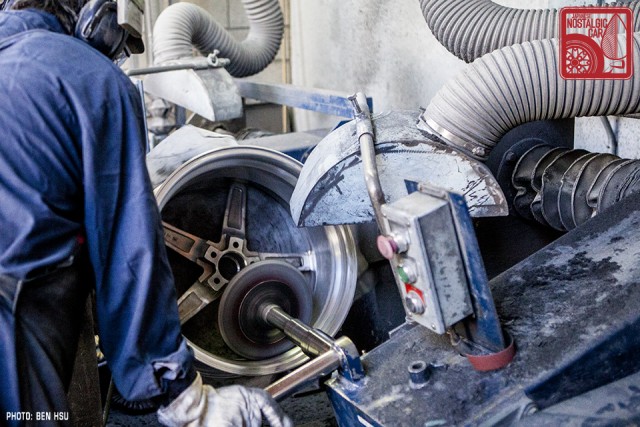

Once the barrels are fixed, they’re machined for maximum shine and smoothness.

LAX Wheel Refinishing 29

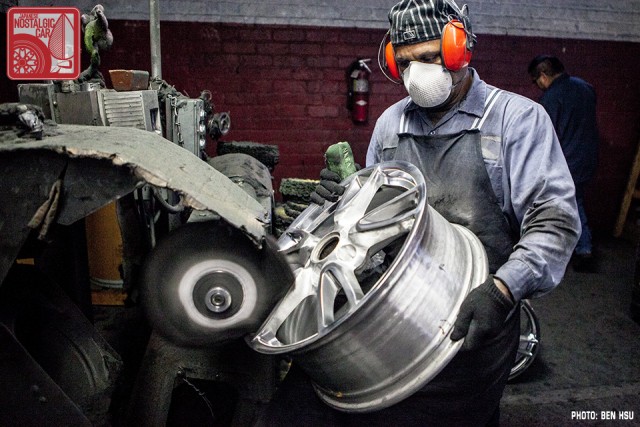

Then the faces are buffed.

LAX Wheel Refinishing 12

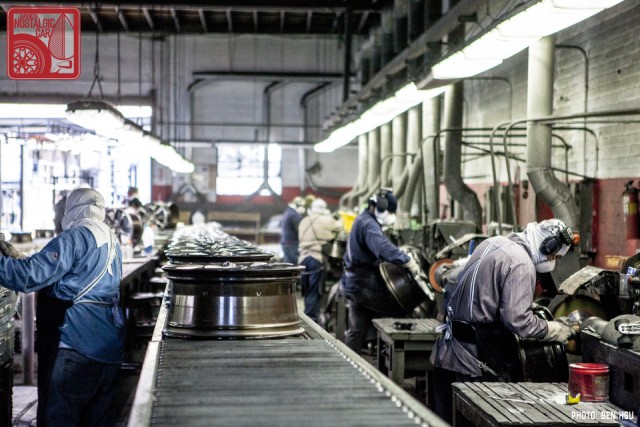

Next, the wheels are sent down a conveyer belt to the quality control department. If the inspection goes well, the next step is to pre-prep for paint.

LAX Wheel Refinishing 33LAX Wheel Refinishing 34LAX Wheel Refinishing 36

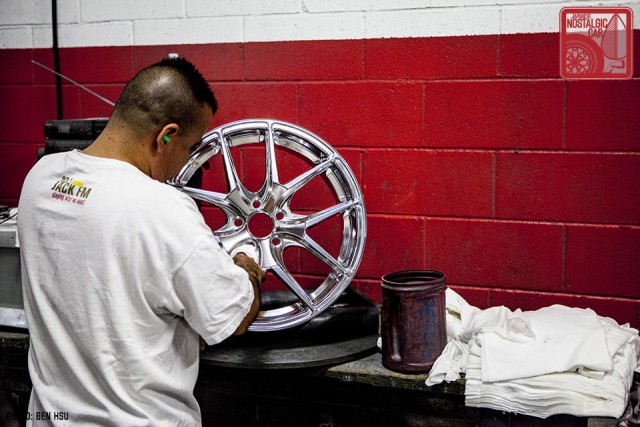

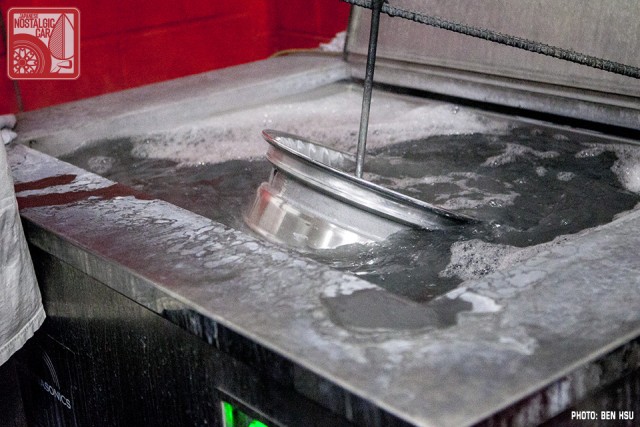

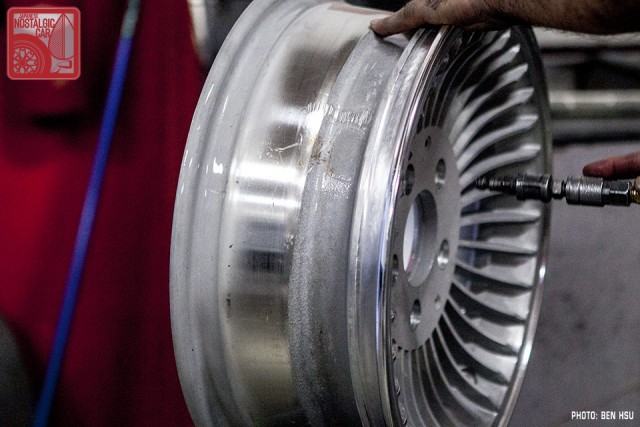

The final step before paint prep is a thorough cleaning in an ultrasonic tank to remove all dirt and tiny flakes of debris created during the previous steps. Each wheel is then meticulously dried with a combination of good old-fashioned compressed air and a stack of microfiber towels.

LAX Wheel Refinishing 37 LAX Wheel Refinishing 39

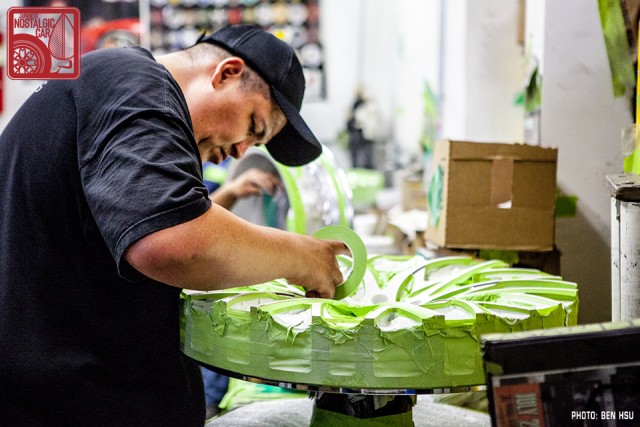

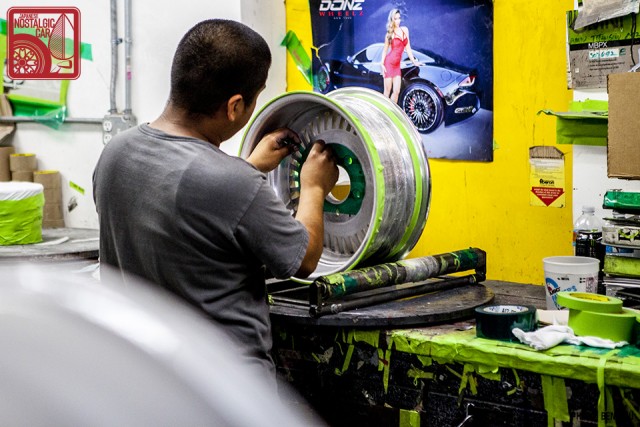

Next, the arduous task of paint prep can begin. Any sections that will not be painted are carefully masked off with green painters’ tape.

LAX Wheel Refinishing 42 LAX Wheel Refinishing 44

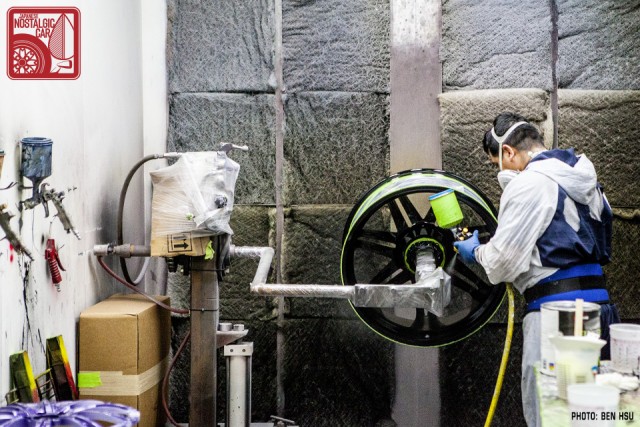

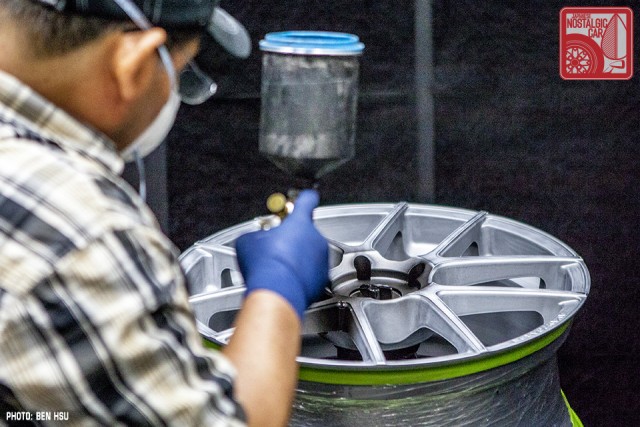

Several large paint booths are located throughout the property, each devoted to a variety of different painting processes. Though wheels are the main business, LAX also paintssmall car parts. We noticed some grilles and trim pieces hanging about.

Available finishes range from soft-touch matte to high polish to chrome. Special colors like the mirror bronze or gold are possible as well, as are multiple-color designs.

Details such as the the bolts on multi-piece wheels are not overlooked. Here, they’re painted on a special holder known by its highly technical name of “piece of cardboard,” but you have to admire the evenness of the grid.

LAX Wheel Refinishing 46

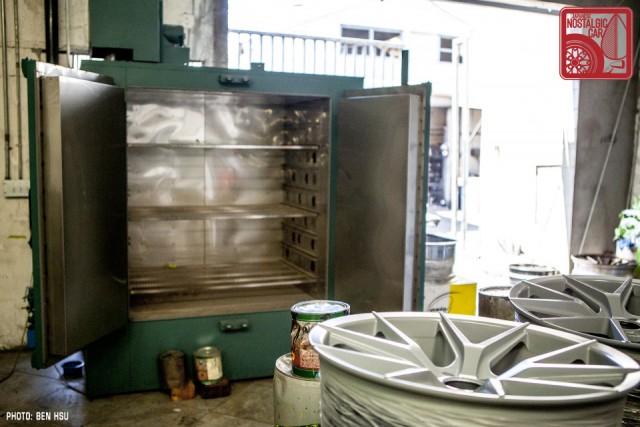

An industrial oven is used for drying and powdercoating.

LAX Wheel Refinishing 56

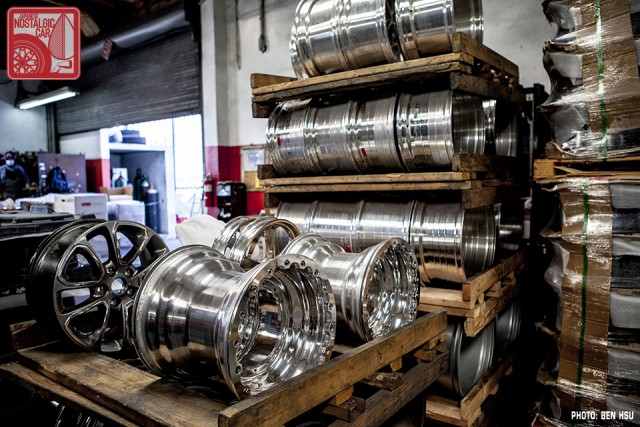

LAX also re-barrels wheels, stretching the width to up to 14 inches wide, which should be more than adequate for all your bosozoku needs.

LAX Wheel Refinishing 47LAX Wheel Refinishing 53

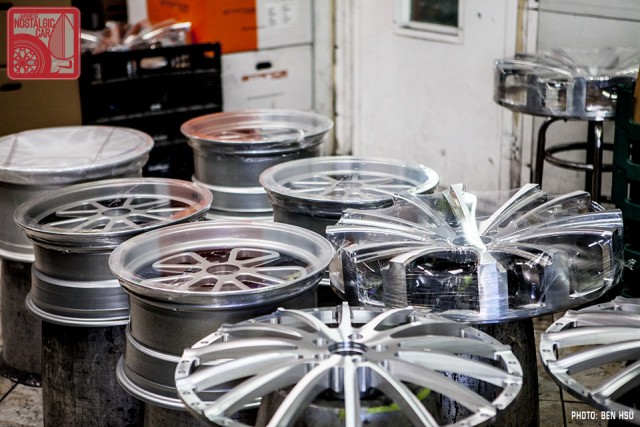

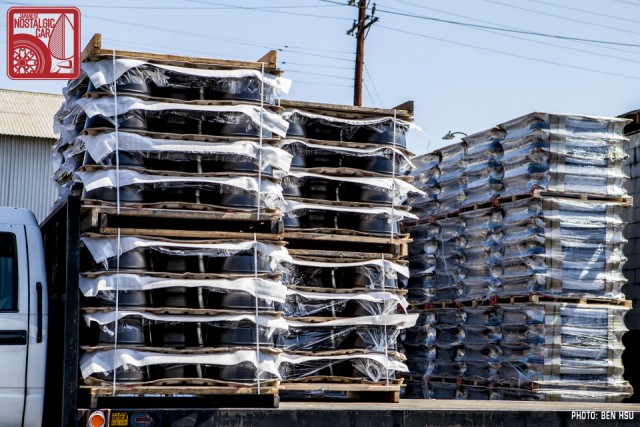

Lastly, the wheels are wrapped for shipping, and they do ship a lot. In addition to the rollers on your 40-year-old Corolla, LAX finishes brand new wheels for giant automakers such as Chrysler.

LAX Wheel Refinishing 58

This is the owner, Jesus Sanchez, one of the kindest and hard working men you’ll ever meet. Sitting in front of his ancient PC, he oversees the massive operation and is constantly shuffling both paperwork and cats. If you stop by, please say hi to him for us and tell him Japanese Nostalgic Car sent you.

LAX Wheel Refinishing 62 LAX Wheel Refinishing 63

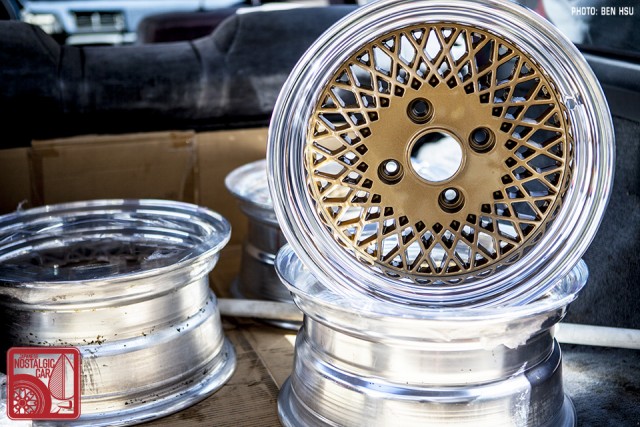

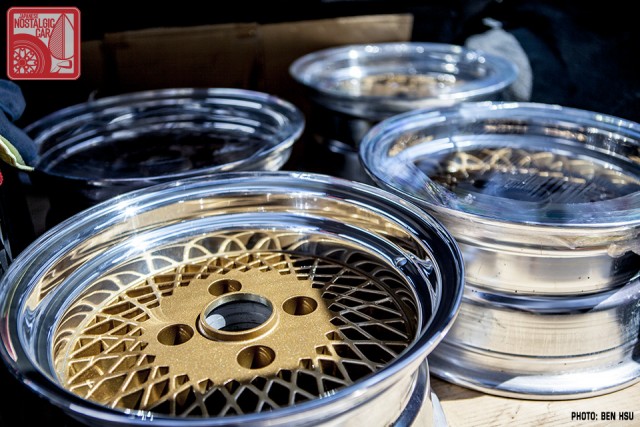

It takes about four weeks from beginning to end, depending on the condition of your wheels. Prices too will vary depending on the condition and finish, but are more than reasonable considering the amount of work involved. We couldn’t be happier with how the Enkeis turned out. They look brand new and like a completely different set than what we brought in.

Owners of discontinued wheels often feel they have no way of bringing them back to their original glory. Hopefully, this tour shows just what is possible and inspires JNC owners to get them restored. LAX Wheel Refinishing can be found at 1520 Spence Street, Los Angeles, CA 90023, or call them at (323) 269-1484.

Special thanks to Jesus Sanchez, Ivan Zalapa, and the rest of the LAX Wheel Refinishing staff.
