In Part 01, Mark “ScaleMaster” Jones showed us how to prep standard Hot Wheels cars for customization. In this installment he transforms diecast Datsun 510 and 240Z into highly detailed custom BRE racers. — Ricky
In Part 01 we disassembled stripped, cleaned, and primed a Hot Wheels Datsun 240Z and two 510s. Now we’ll paint those blank canvases to create 1:64 scale version of some the BRE 240Z and 510, as well as Peter Brock’s personal “Brockbuster” 510.

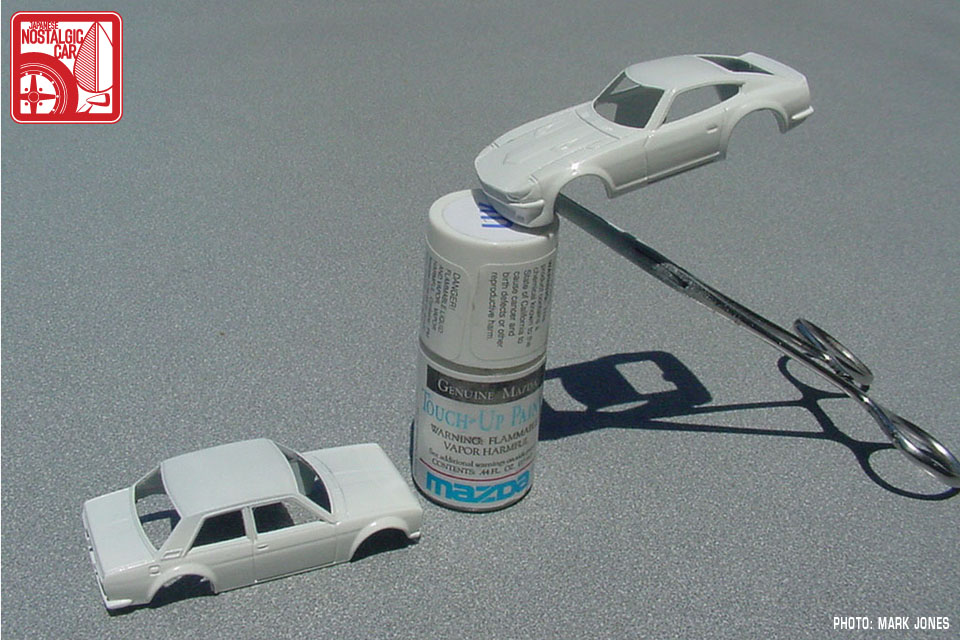

We left off with a pair of bodies in white, which will form the basis of the cars to don BRE livery. The BrockBuster 510 will be, like Pete’s real car, yellow, so while these two dried I went about painting the remaining 510 body.

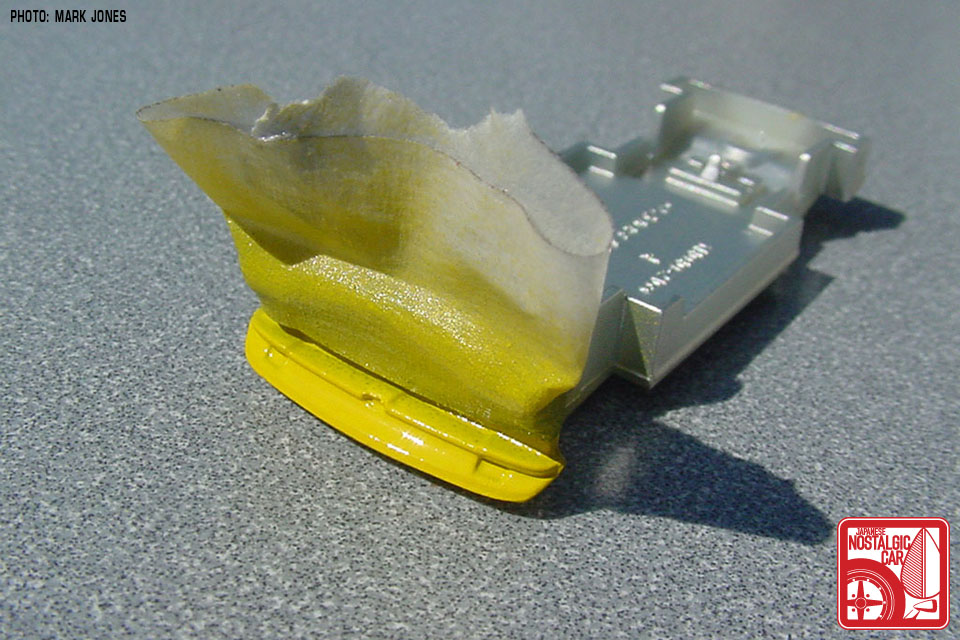

Since the front spook on the BrockBuster will be the same color as the body, I removed the wheels from the chassis to protect them from overspray. The same pick tool I used to clean up the 240Z body was used to spread the plastic tangs just enough to free the axles.
The BrockBuster 510 was painted Tamiya TS-16 Yellow lacquer. It comes only as a spray, but I decanted some to have more control with the airbrush.
The spook was masked and sprayed at the same time. Time to let the paint cure. For the BRE cars, the white needed to be completely dry before masking off to paint the red. Fortunately the paints I used dry and in 24 to 48 hours the warm SoCal summer.
While the bodies were drying, I drew the artwork for the BRE graphics and outputted them as waterslide decals.

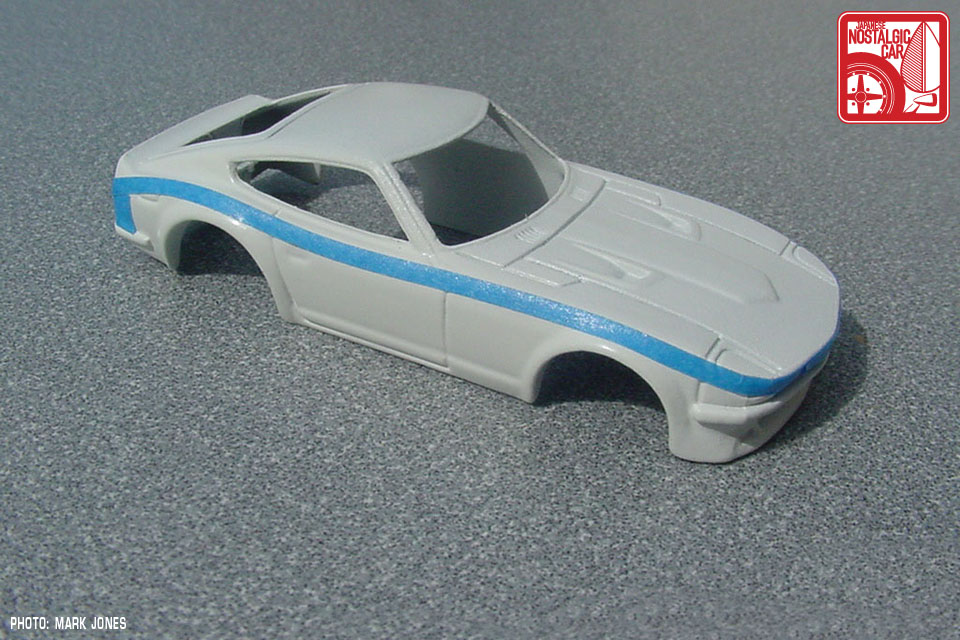

With the two race cars ready for the two tone treatment, I needed to begin masking. First up is the 240Z. I used 3M blue painter’s tape. Thin strips were cut with a sharp knife. I applied a piece of tape to a sheet of glass and cut the strips with a scalpel and a straightedge.
Take your time and try to make it as symmetrical as you can.

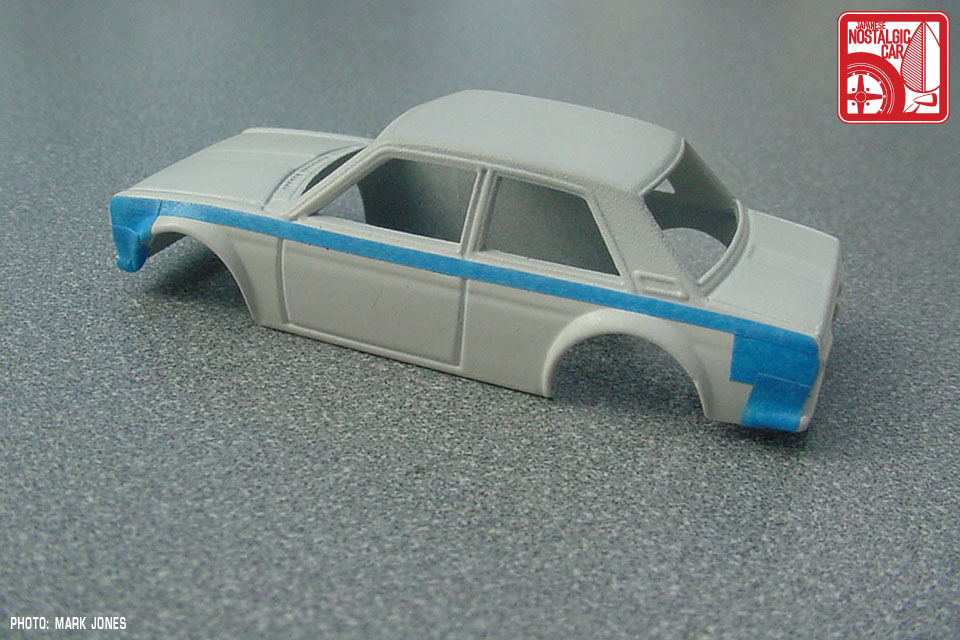

Next, the rest of the white is masked off to protect it from overspray. I used a cheaper but still good quality tape for all the non-edge masking.

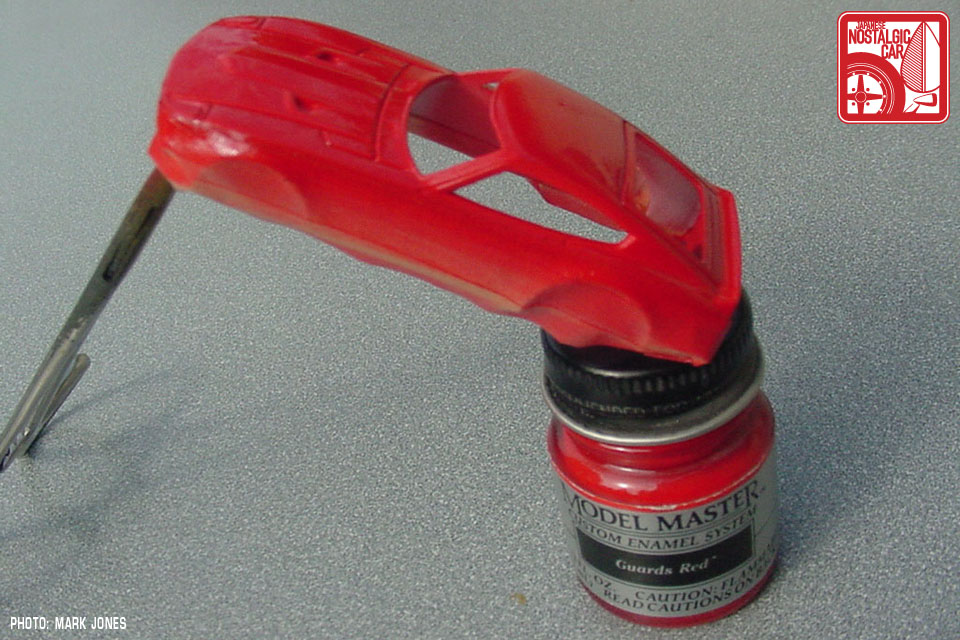

As soon as the 240Z body was masked off, I applied a light coat of Testors Guards Red by airbrush. While that coat of paint was drying, I masked off the 510.

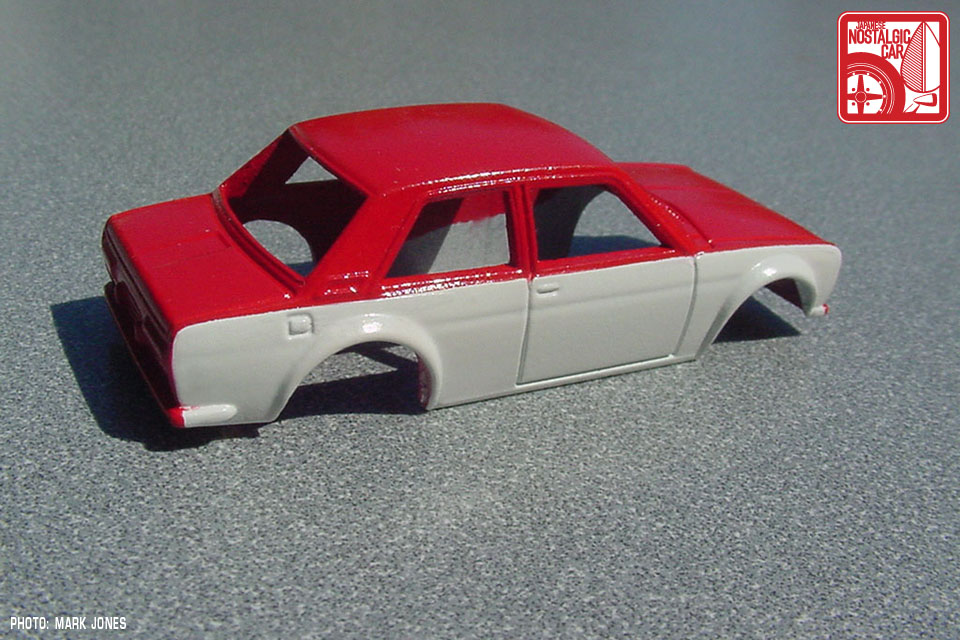

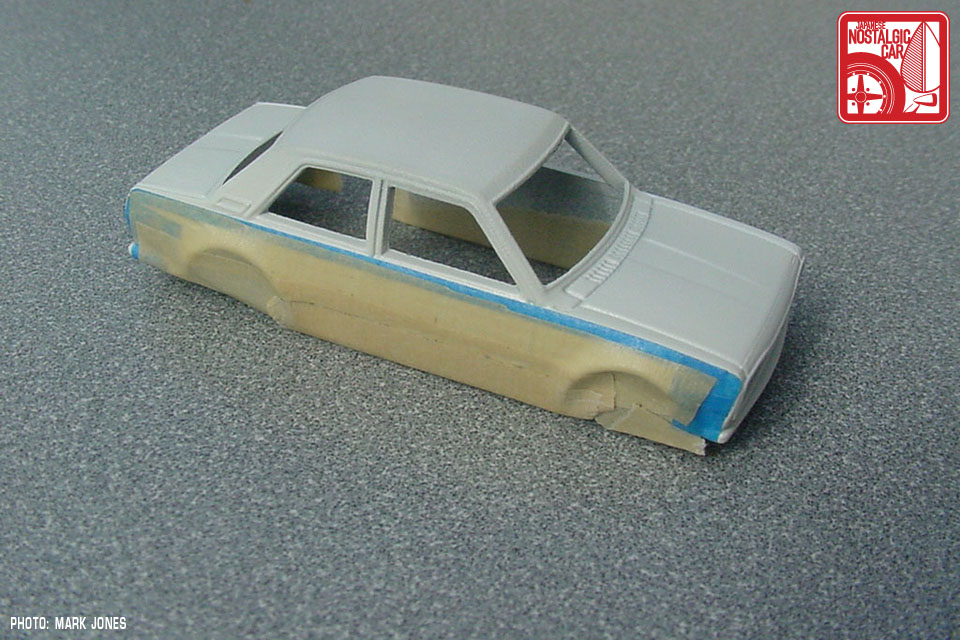

The 510 received the same treatment, but it took a little longer due to the radiuses on the front fenders and the fact that the rear panel is red too.
Extra pieces of tape were cut with scissors to mask off the front and rear side areas.

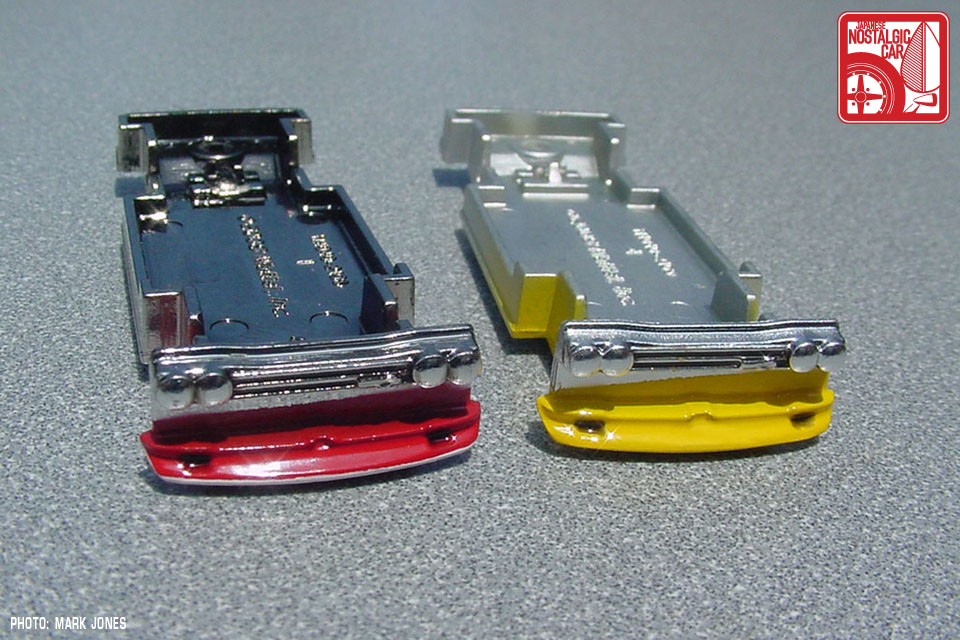

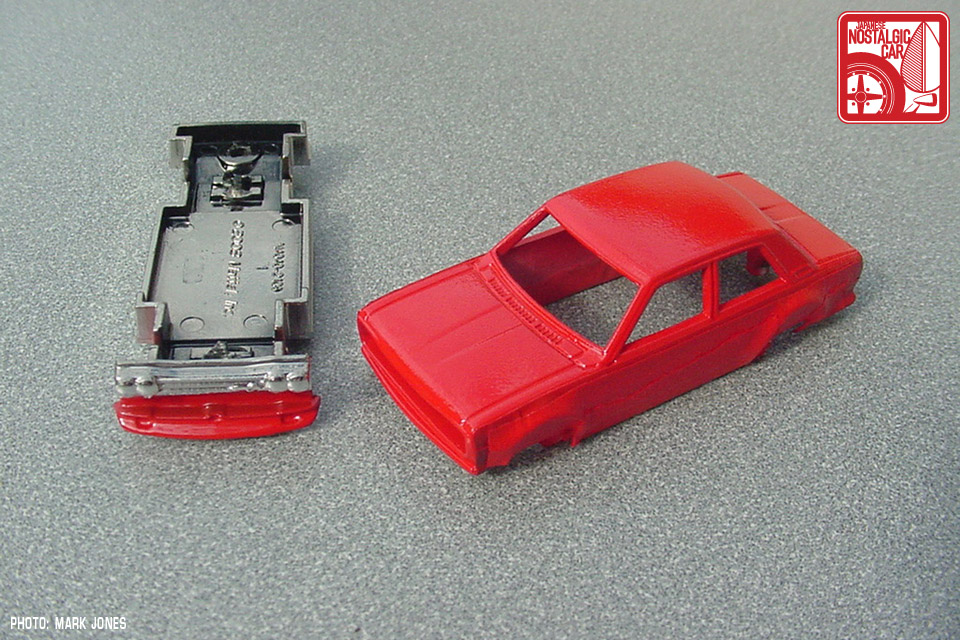

Again, as soon as the masking was completed, I applied a light coat of Guards Red. The second and final coat of red was shot onto the 240Z, as the masking time of the 510 was enough flash time. The front spook that is molded to the chassis was also masked and sprayed at the same time, as was done on the BrockBuster.

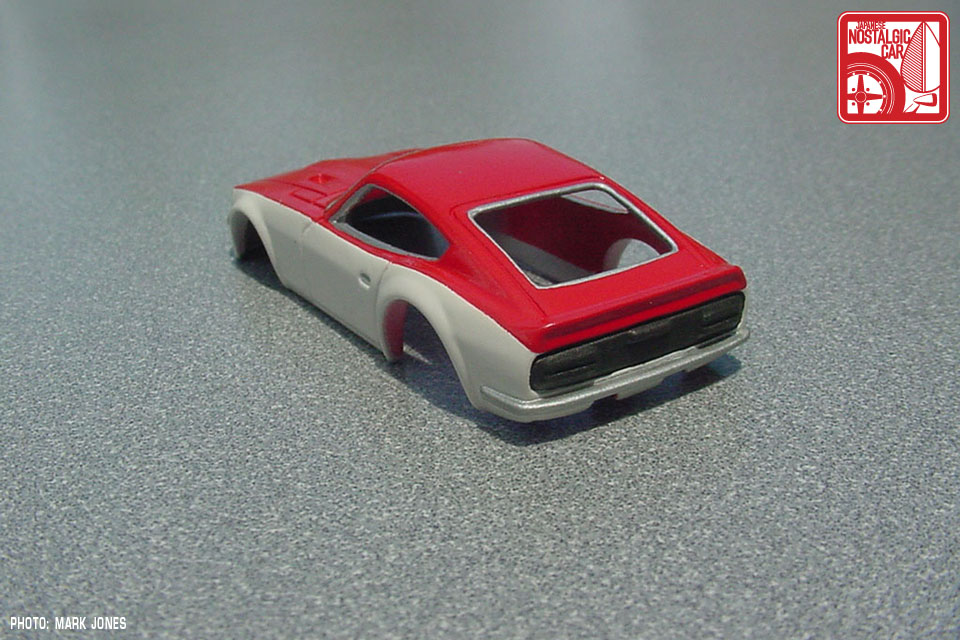

Within 5 minutes of the last coat of paint, the Z was carefully unmasked. It has some orange peel, but as it dries it will shrink a bit, and the final clear coat will also smooth it out. Leaving the tape on for too long can lead to the color bleeding under the tape and a possibility of pulling the paint off in sections.
The 510 was given its second coat of paint about 15 minutes after the first.

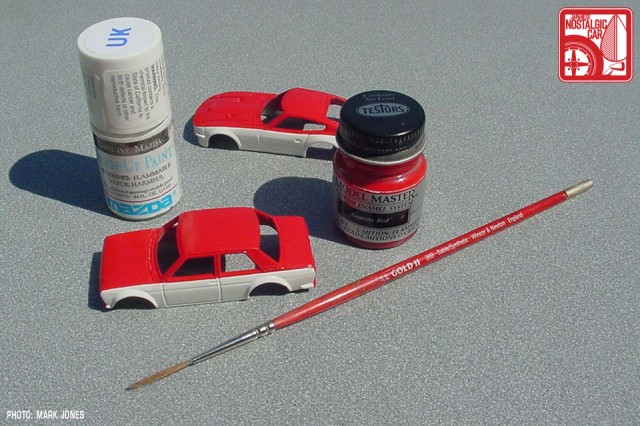

Both cars had a red little bleed under the tape. Sometimes no matter how careful you are it happens, especially with these smaller cars. Once the red paint dried I just touched up the problem areas by hand using a #0 round sable blend brush.

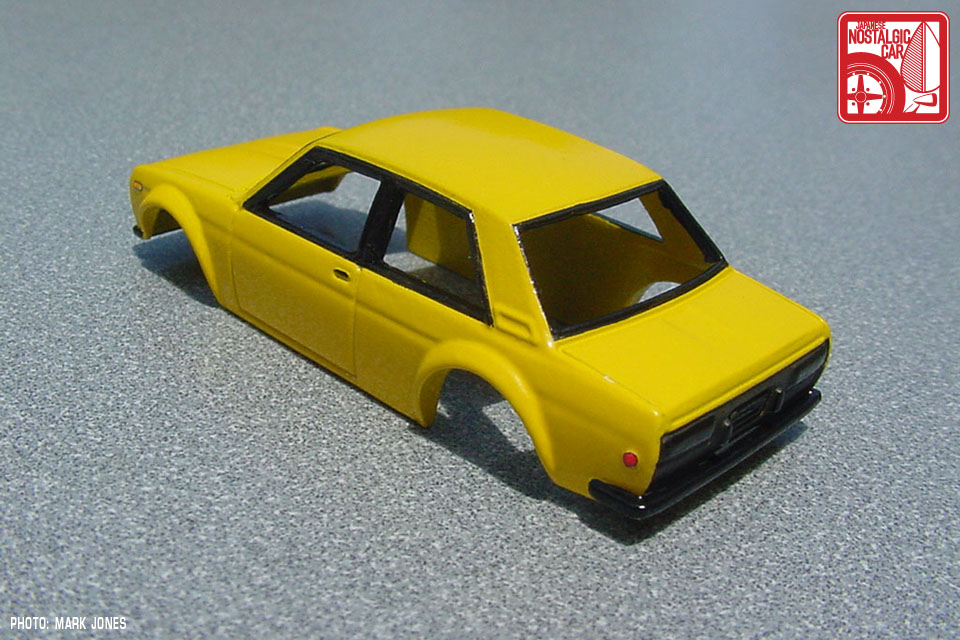

I hand painted the black trim on the BrockBuster with Testors Black enamel and a sable blend brush. I prefer to paint all the trim and other exterior details I can before applying decals. It makes touching up when required that much easier. I also painted the rear panel gunmetal gray.
At this point in the photos I have already began decaling and have applied the side marker lights.

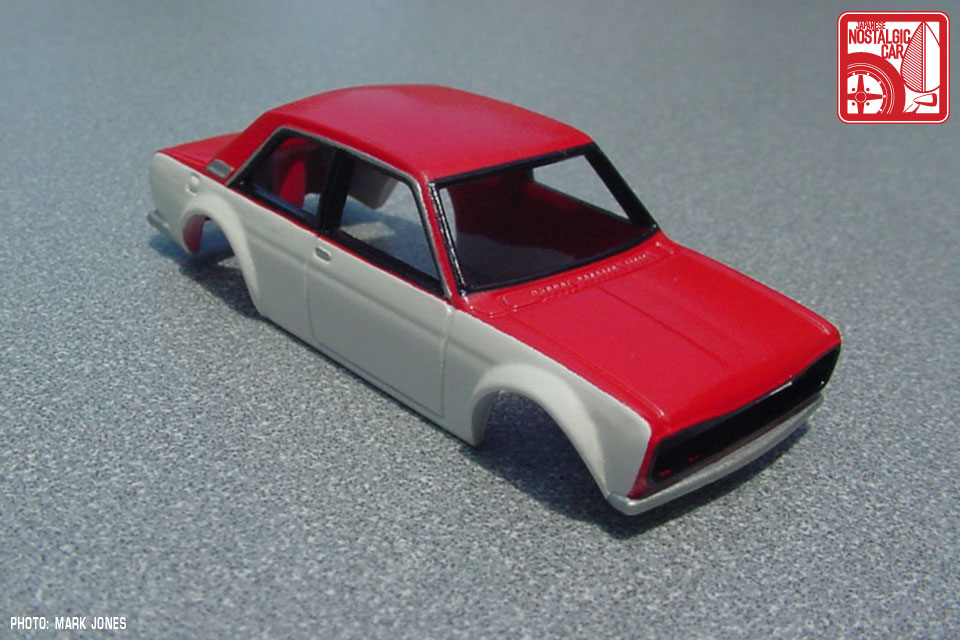

The side window trim on the BRE 510 was bit more work since it has the silver drip rails. I painted them first with Tamiya X-11 Chrome Silver enamel, then painted the all the black trim with Testors enamel.
The bumpers and other silver details were also painted with the X-11 silver.
The 240Z received all chrome window trim, like the real car, and the same silver paint was freehand brushed on the bumpers as well. The spook was hand-painted red as it was easier to do so than mask and spray it.
The white lower edge was added by brush after the red had dried. Testors enamel gray was used for the front turn indicator block offs. Gunmetal again was used on the rear panel.
The grilles and spooks for the 510s were also painted. A black wash was used on the grilles, a white edge was added to the BRE’s spook like on the 240Z, and the brake intake ports were shaded in.

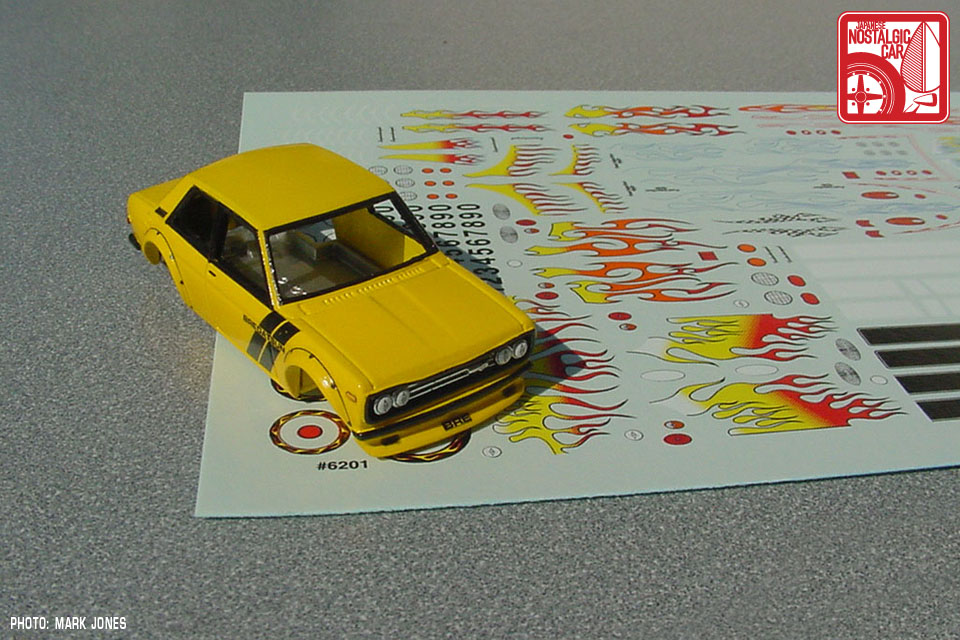

Headlight decals from Scale-Master sheet #6201 were utilized on the BrockBuster.

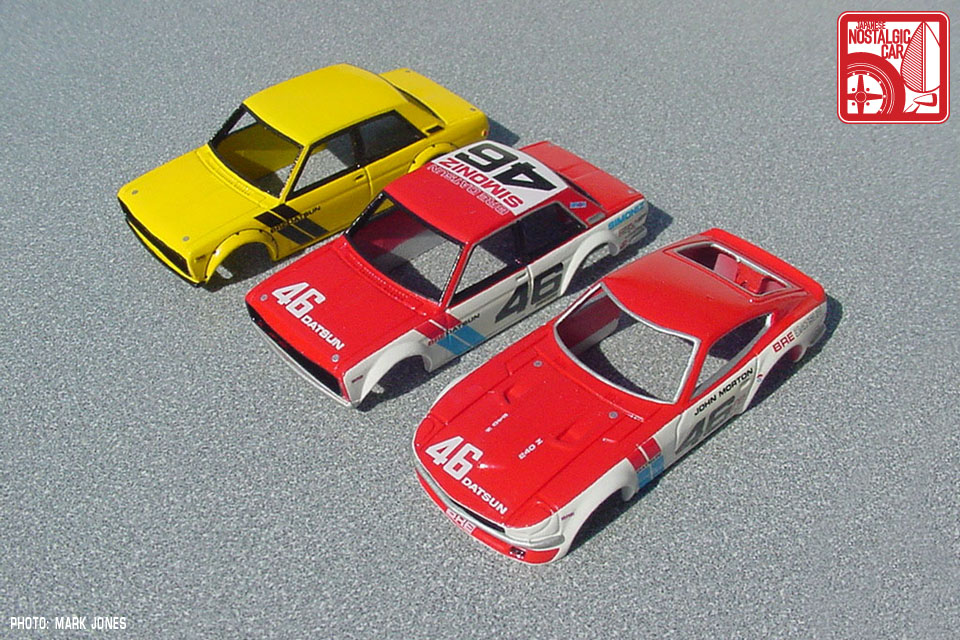

Now that the exterior painting is done, it is time to apply the custom drawn decals. A few hours were spent applying them and they were allowed to dry for about 24 hours. It is important to allow the decals to fully dry before clear coating the bodies. Here they are drying.

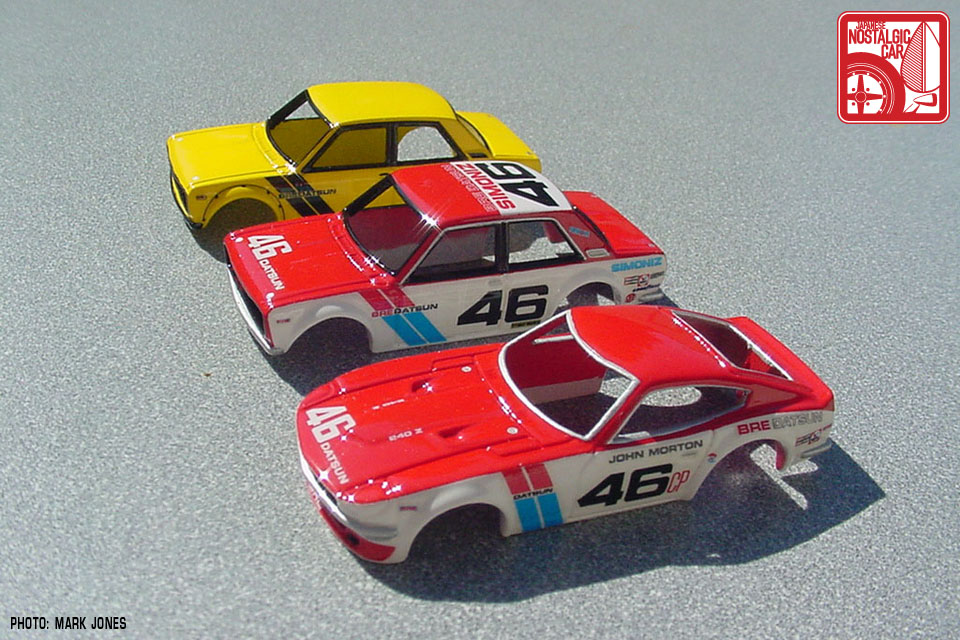

For a comparison, here they are a day and a half later with the clear applied. I used Matrix automotive urethane. It is a two part clear intended for real cars, though I add extra reducer to thin it out. It dries to the touch in a few hours, but I let them dry for a couple days to lessen the chances of marring the finish during final assembly.
The wheel andaxle assemblies were removed from the chassis of the 240Z the same way they were from the 510s. A donor set consisting of the fronts from another 510 and the rears from a Hot Wheels ’67 Firebird were installed as replacements. Before installation the spokes were painted Tamiya German Gray XF-63 acrylic. Decals were used for the Goodyear tire lettering. The “center caps” or axle ends were painted too. Cadmium Zinc for the fronts (to denote the grease caps), and black for the rears. Once the decals were dry, the wheels were airbrushed with Testors Dullcote flat clear.
The axles were dropped back into place and the plastic tangs were bent into their original positions. If the axle holder tangs break it’s usually not a big deal as most cars are engineered to trap the wheels between the interior or the body and the chassis. You can assemble them “loose” or use a drop of cement on the axle and the chassis. Rubber cement actually works quite well as it provides enough holding power, but also flexes to allow the wheels to “float” a little. Makes it easier to keep all four wheels on the ground too.

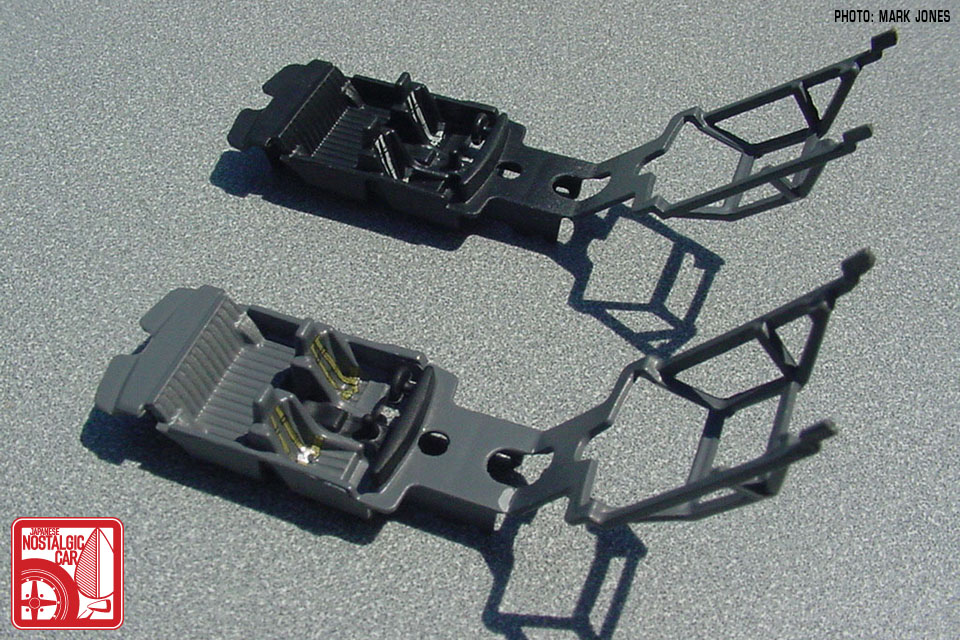

The interiors of the BRE 510 and the 240Z were sprayed with Krylon semi-flat black. The roll cage of the BRE 510 and the entire interior of the BrockBuster were sprayed with Tamiya AS-4 Gray. The dash and console wash brush painted with Tamiya acrylic flat black.

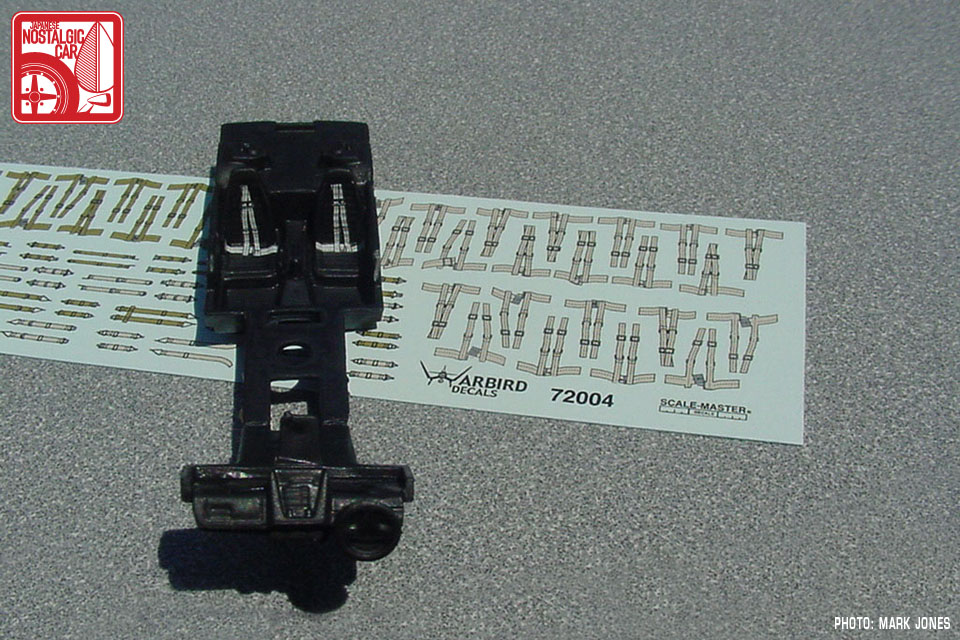

Decals were used for the seat belts on all three cars. While the harnesses can be brush painted when molded in (like on the 510), I found these 1:72 scale aircraft items by Warbird Decals to work very well and easily on 1:64 scale cars. For a little variety I used the olive drab belts in the BrockBuster. Light gray ones were used on the BRE cars.

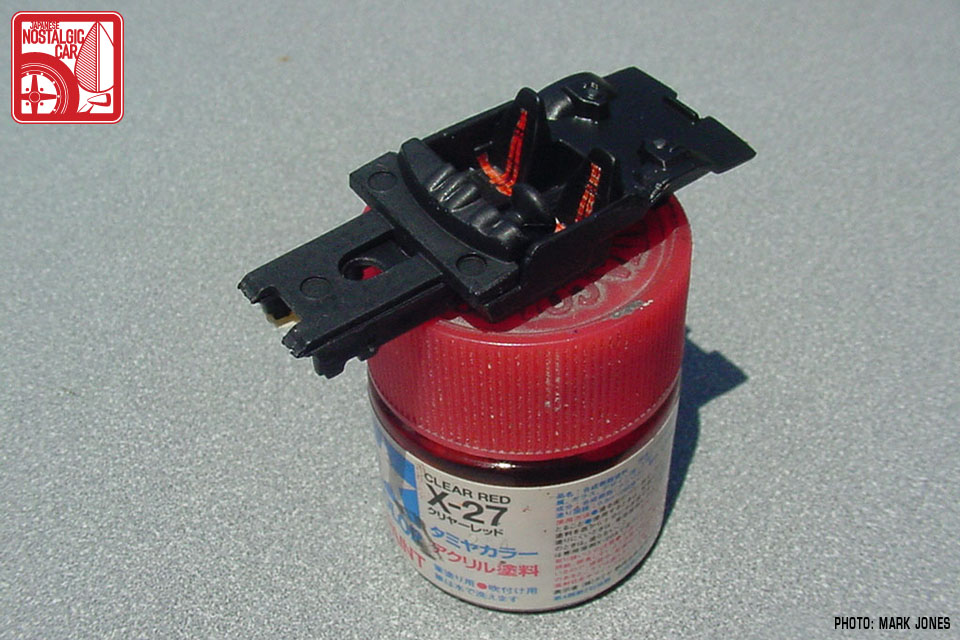

Once the decals were dry, I brushed Tamiya Transparent Red over the 240Z’s belts to make them red.

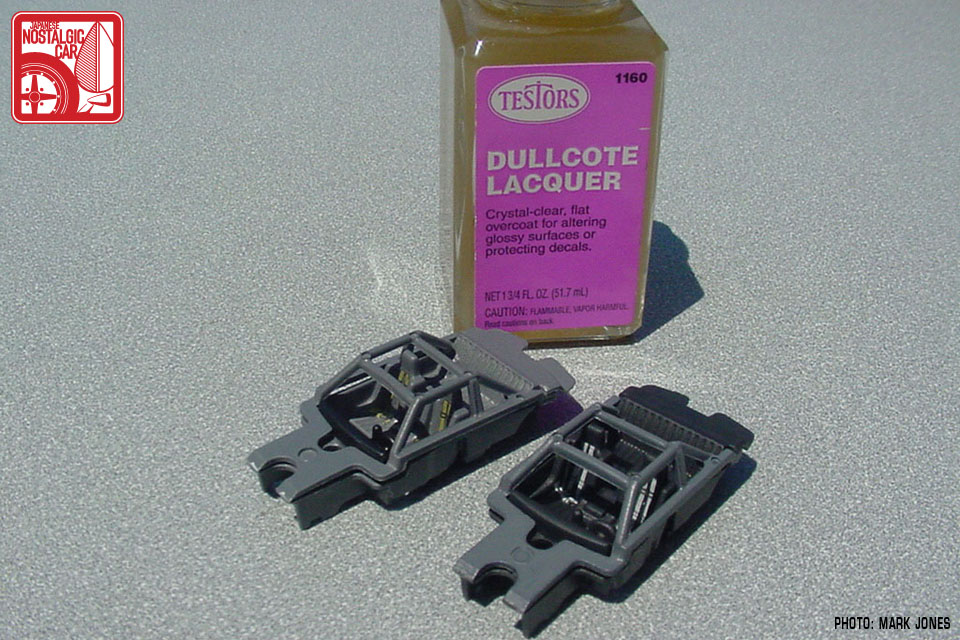

All three interiors were airbrushed with Testors Dullcote lacquer to knock the shine down on the decals. Once the clear on the bodies had fully dried, I waxed them. Any wax works well, I used some Tamiya Modeling Wax, though I don’t know if it is still available.
Reassembly is simply a case of putting the windows and interiors into the bodies, then installing the chassis; just reverse the order of disassembly. In many cases the chassis will snap back into the body, and the project is done.
Often they won’t stay together on their own accord, so I usually just secure the chassis with a drop or two of CA glue. (CA is short for cyanoacrylate, i.e. super glue, Krazy Glue, etc). 5 minute epoxy can also be used.

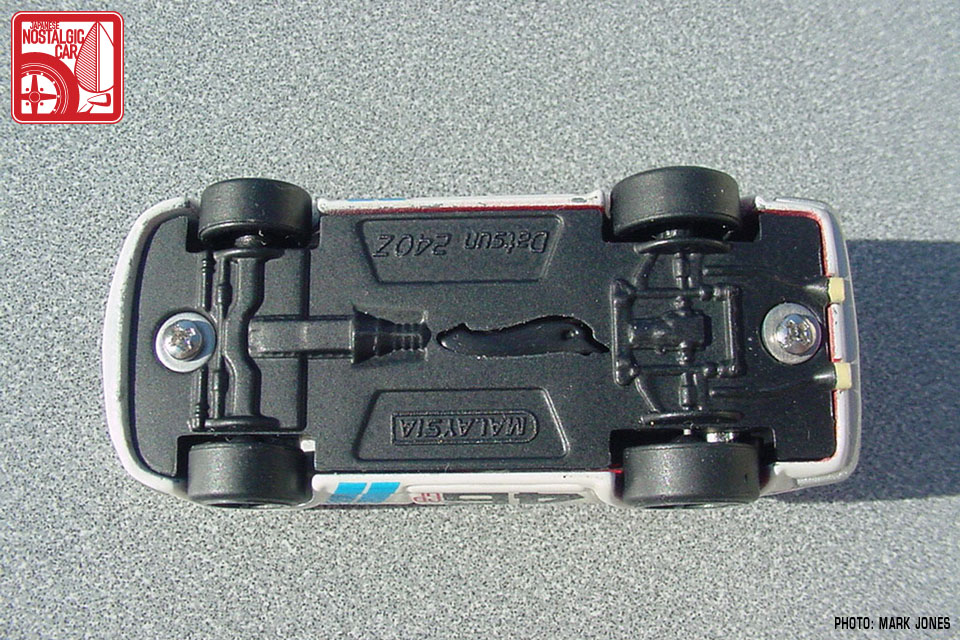

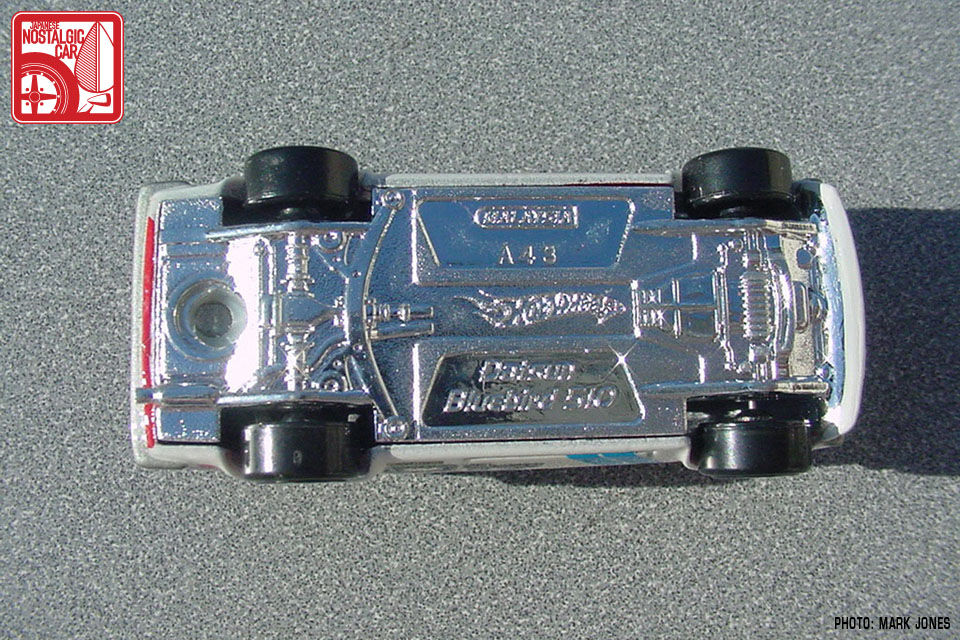

These three cars were reassembled using a different technique. The pilot hole that was used to center the larger sized drill bit to take them apart was threaded with a 2-56 tap. Screws make for a sanitary and professionally finished look as well as allow the cars to be easily taken apart if so desired. Here is the 240Z all buttoned up.

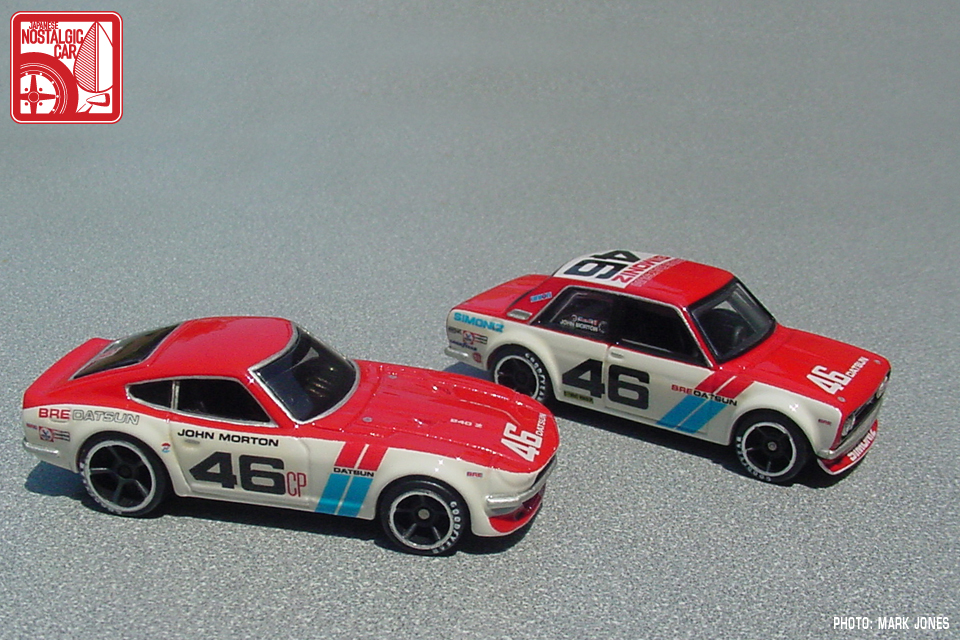

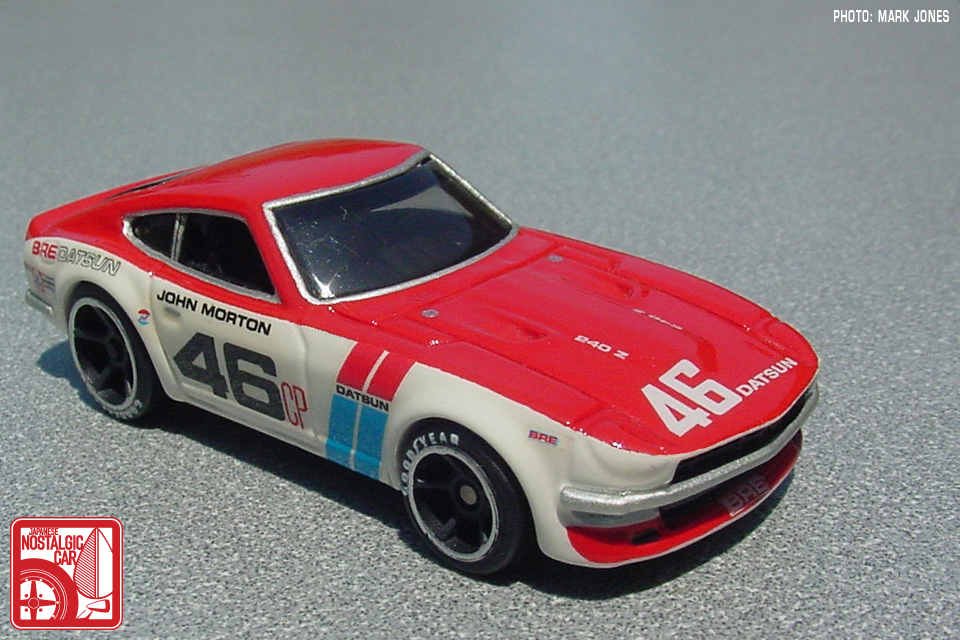

Ready to run. While not an exact copy of the 1:1 scale Datsun 240Z racer, due to the casting being a little tweaked and “Hot Wheeled,” the 240Z does a convincing job of playing the part of a BRE icon.

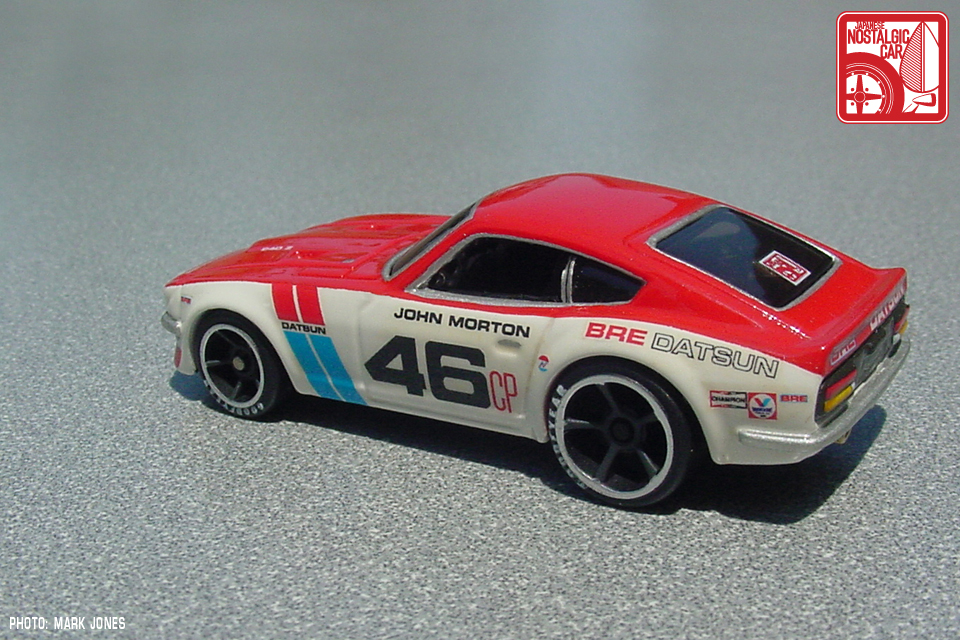

Notice the exhaust tips too. They were painted a light tan to mimic the real car.
The two-tone actually hides some of the less realistic lines on the Hot Wheels casting.

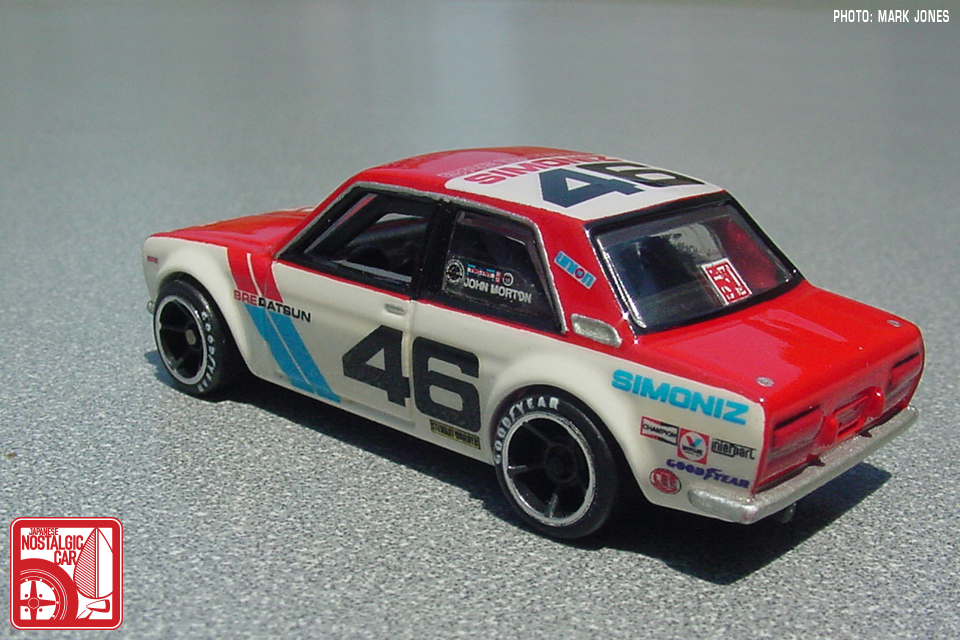

Of course I had to put the JNC inkan in the rear window!

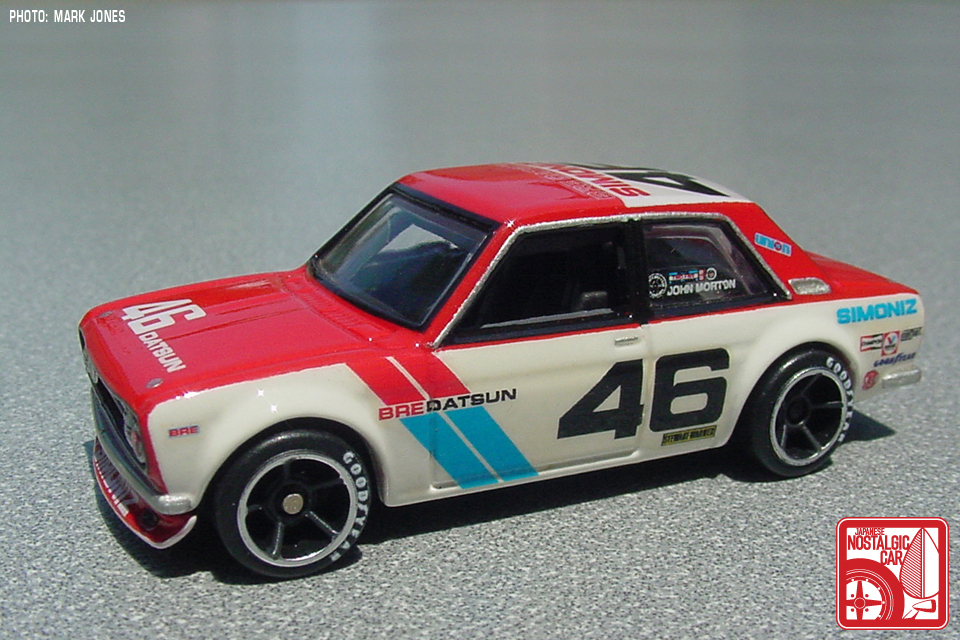

This casting looks a bit closer to the real car used by BRE.
While not 100%, (it is after all “just a toy”) it also does a good job of playing the part.
I try to just focus on the decorations, not get too bogged down with the minor issues the little die-casts may have.

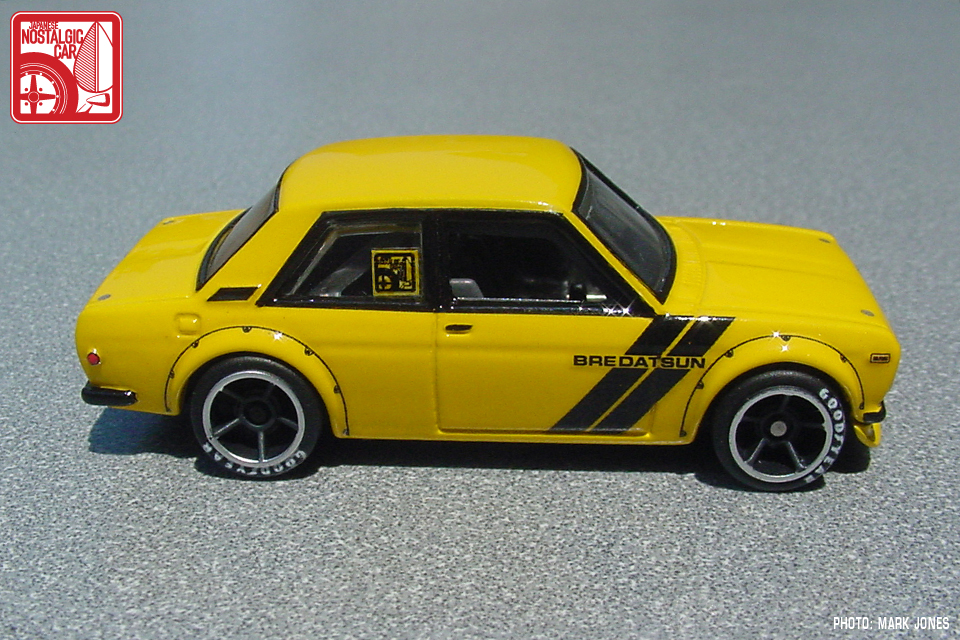

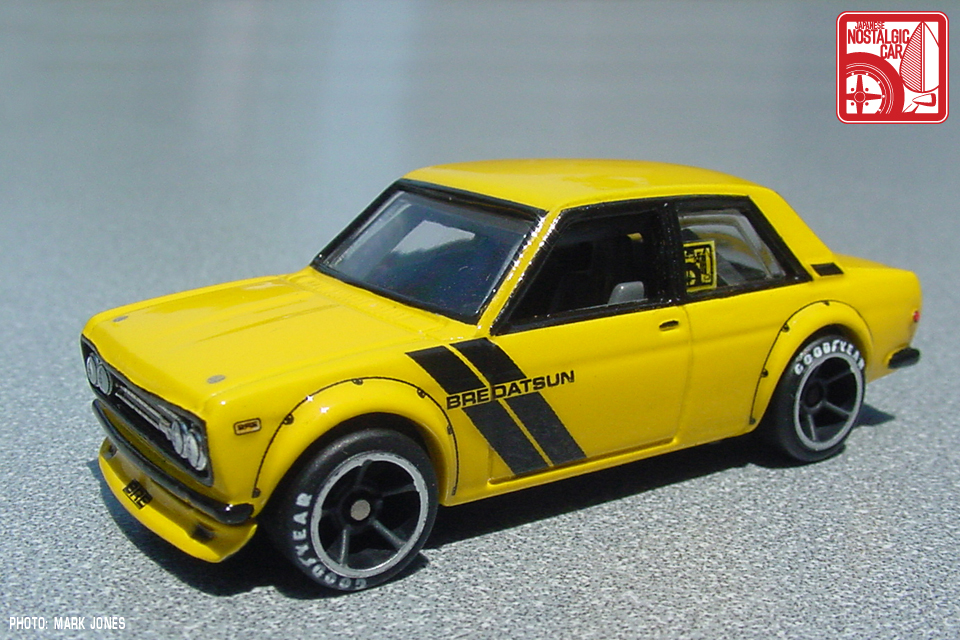

The real BrockBuster 510 didn’t have the black BRE stripes, but the Revell model kit of the car had them as an option.
The real car didn’t have bolt-on fender flares either, but since they were molded onto the casting, I thought I’d give it a little Japanese shakotan flavor.
I added two matching JNC inkan on this version, in black and yellow, one in each rear window.
Nothing like eye searing bright yellow on a bruiser of a little car. What more can I say?

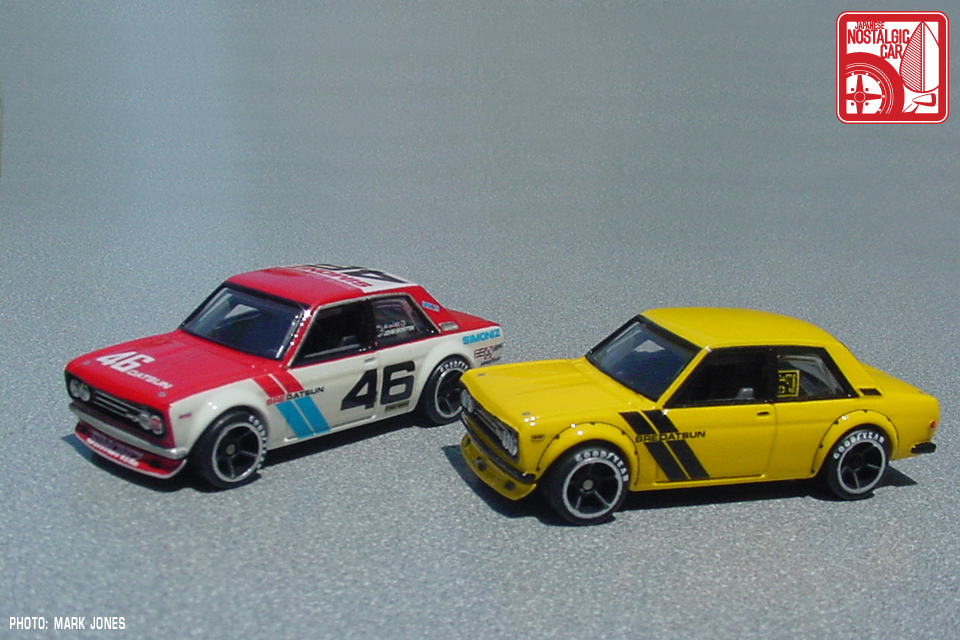

Just another shot of the two 510s together.
Remember, the legendary John Morton who piloted the life-sized versions of these cars will be at the Japanese Classic Car Show on September 15, so be sure to bring your autograph books!
