 Post subject: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Wed Mar 28, 2012 7:27 pm
User avatar

Joined: Fri Nov 25, 2011 7:14 am
Posts: 55
Location: Diego Martin, Trinidad W.I.
This is the rare of the rarest in Mazda Rotary History with only 44 made from Feb.1974~Jul.1976 the Parkway Rotary Bus is one cool ride notably with its TQX gearbox and select-sync differential...There are about 4 that still exsist in Japan and one on the road after getting recomissioned.

Here are the technical specs of the TA13L...

Pics later :)

_________________
rotorking
Mazda RX2 S122A S2
http://rx2re.weebly.com


Last edited by jdm_master on Sun Apr 01, 2012 11:48 am, edited 1 time in total.

Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Wed Mar 28, 2012 7:28 pm
User avatar

Joined: Fri Nov 25, 2011 7:14 am
Posts: 55
Location: Diego Martin, Trinidad W.I.
TA13L specs:
Make: Mazda
Model: Parkway Rotary 26 Bus
Chassis-code: TA13L
Year(s)-produced: 1974~76
Total-production: 44
Model-type: 22-seater (low line), 26-seater Deluxe & 26-seater Super Deluxe
Options: A/C
Body-style: 3-door bus
Body-length: 6195 mm
Body-width: 1980 mm
Body-height: 2280 mm (22-seater)/2310 mm (26-seater)
Wheelbase: 3285 mm
Front-track: 1525 mm
Rear-track: 1470 mm
Ground-clearance: 180 mm
Curb-weight: 3210 kg (22-seater), 2835 kg Deluxe, 3260 kg Super Deluxe

Engine-code: 13B
Engine-type: twin-rotor Wankel
Engine-dimensions: 588x714x661 mm
Engine-weight: 151 kg
Combustion chamber volume: 654 cc x 2
Displacement: 1308 cc
Compression-ratio: 9.4:1
Compression-pressure: 9.0 kg/cm2 @ 280 rpm
Operating oil pressure: 11.0 kg/cm2
Induction: single 4-bbl downdraft Hitachi carburettor (REAPS)
Ignition: single distributor (twin-points)
Firing-order: 1-2
Max.power: 135 ps @ 6500 rpm
Max.torque: 132 lb-ft (18.3 kg-m) @ 4000 rpm
Port-timing: Intake opening @ 32 deg ATDC
Intake closing @ 40 deg ABDC
Exhaust opening @ 71 deg BBDC
Exhaust closing @ 48 deg ATDC
Oil-capacity: 6.4 l
Coolant-capacity: 11.0 l
Thermostat-type: wax (opening temp 82 +/- 1.5 deg C and fully open @ 95 deg C)
Point-gap: 0.45 +/- 0.05 mm
Dwell-angle: 58 deg +/- 3 deg
Idle-speed: 820 rpm
Ignition-timing: 20 deg BTDC (Leading) @ 720 rpm
15 deg BTDC (Trailing) @ 720 rpm
Capacitor-value: 0.24~0.30 microfarad
Plug-type: NGK B7EM or B8EM
Plug-gap: 0.60~0.70 mm
Electrical: 12v w/NS70 65Ah battery

Drive-layout: cab over engine (longitudinal)/rear-wheel-drive
Transmission: 5-speed torque-glide manual gearbox w/select-sync differential
Gear-ratios: 1st-5.376:1
2nd-2.608:1
3rd-1.693:1
4th-1.000:1
Rev-5.495:1
Final-6.667:1
Clutch dimensions: 225x150x3.5 mm
Trans-capacity: 2.8 l
Suspension: front-beam axle w/leaf springs, sway bar and telescopic shocks
rear-live axle w/leaf springs and telescopic shocks
Brakes: front-drum w/two leading shoes (servo-assisted)
rear-drum w/leading and trailing shoes (servo-assisted)
Brake master dia.: 1"
Servo dia.: 9"
Front wheel cyl dia.: 1-1/8"
Rear wheel cyl dia.: 1"
Front drum dia.: 320 mm
Rear drum dia.: 320 mm
Stopping distance: 13.5 m from 50 km/h
Steering: recirculating-ball (manual)
Steering-ratio: 28.9:1
Turning-radius: 6.7 m
Turns lock-to-lock: 4.7
King pin angle inclination: 7 deg 00 min
Camber angle: 1 deg 30 min +/- 30 min
Steering wheel dia.: 420 mm
Tire-size: 6.50-16-8 (4.25 kg/cm2 front)/(4.0-4.25 kg/cm2 rear)
Rim-size: 4.50E-16SDC
Fuel tank capacity: 140 l
Top speed: 75 mph (120 km/h)

_________________
rotorking
Mazda RX2 S122A S2
http://rx2re.weebly.com


Last edited by jdm_master on Sun Apr 01, 2012 11:46 am, edited 2 times in total.

Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Wed Mar 28, 2012 7:42 pm
User avatar

Joined: Fri Nov 25, 2011 7:14 am
Posts: 55
Location: Diego Martin, Trinidad W.I.

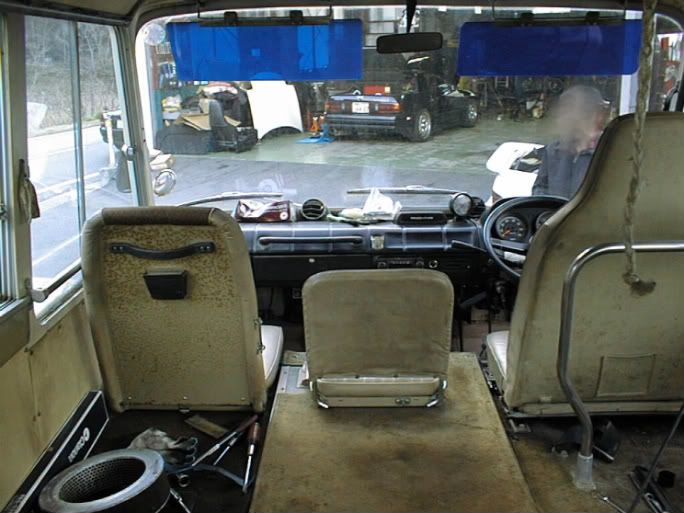

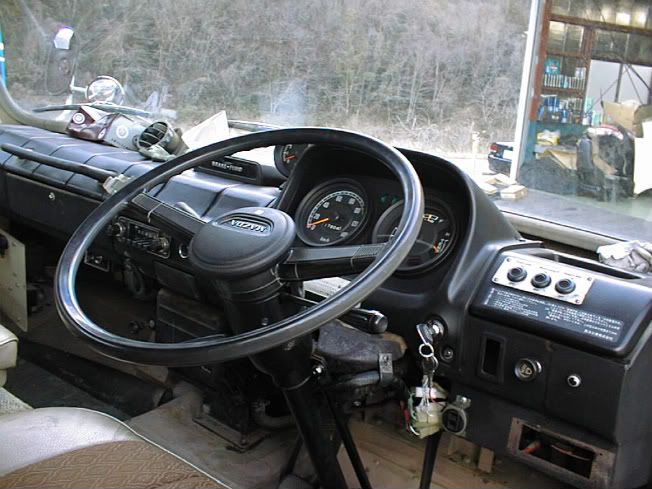

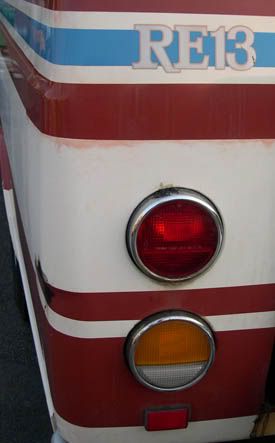

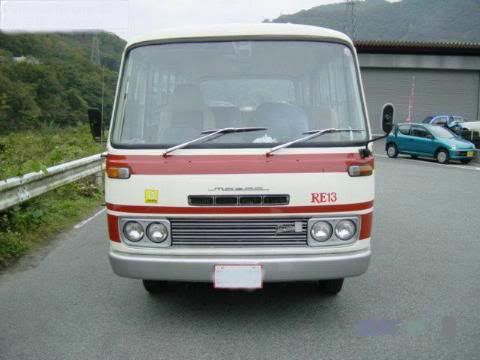

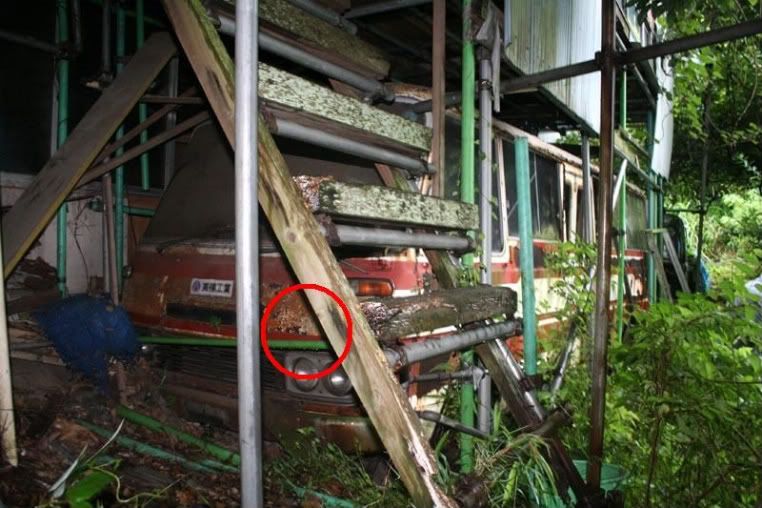

First pic is one of the four buses that remain and the rest is one that is being re-done...

_________________
rotorking
Mazda RX2 S122A S2
http://rx2re.weebly.com


Last edited by jdm_master on Sun Apr 01, 2012 11:49 am, edited 1 time in total.

Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Thu Mar 29, 2012 2:18 am

Joined: Mon Aug 23, 2010 6:55 am
Posts: 56
Location: perth western australia
That looks like a rare find mate, well done.


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Thu Mar 29, 2012 6:29 am
User avatar

Joined: Sat Feb 24, 2007 9:43 am
Posts: 184
Location: Canada
Heck of a find. Thanks for sharing with us.


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Thu Mar 29, 2012 4:06 pm
User avatar

Joined: Fri Nov 25, 2011 7:14 am
Posts: 55
Location: Diego Martin, Trinidad W.I.

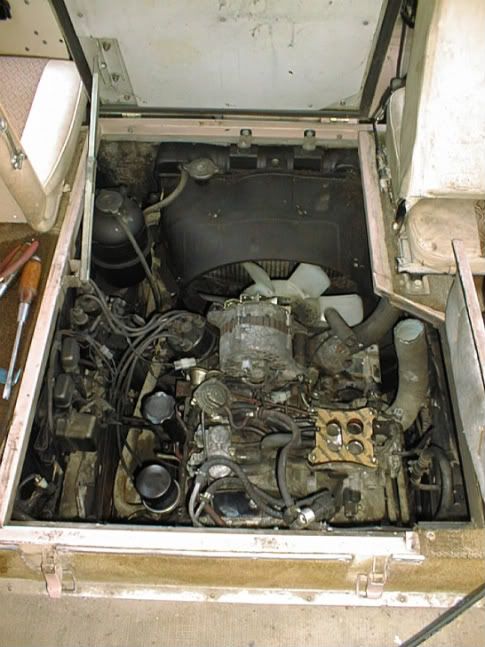

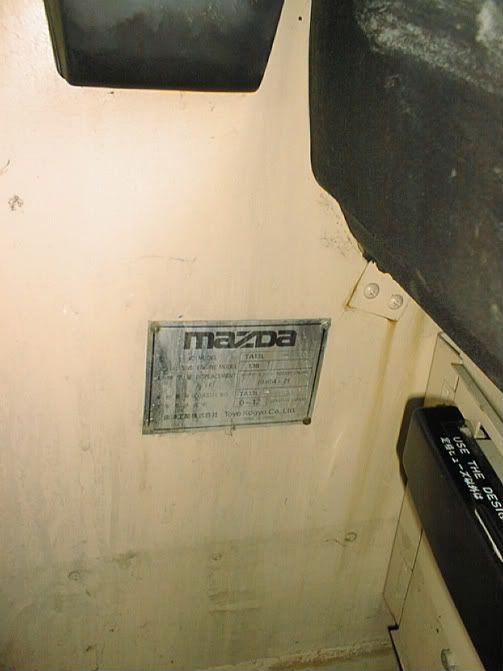

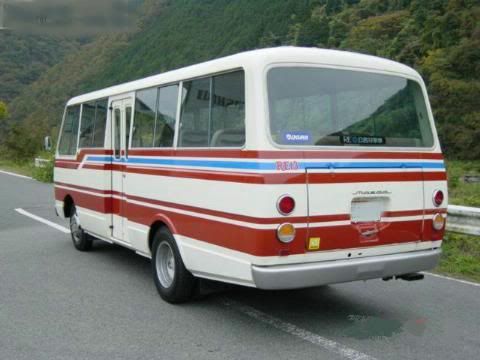

Thanks lol here's a little more of the 13L...

_________________
rotorking
Mazda RX2 S122A S2
http://rx2re.weebly.com


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Thu Mar 29, 2012 4:22 pm
User avatar

Joined: Fri Nov 25, 2011 7:14 am
Posts: 55
Location: Diego Martin, Trinidad W.I.

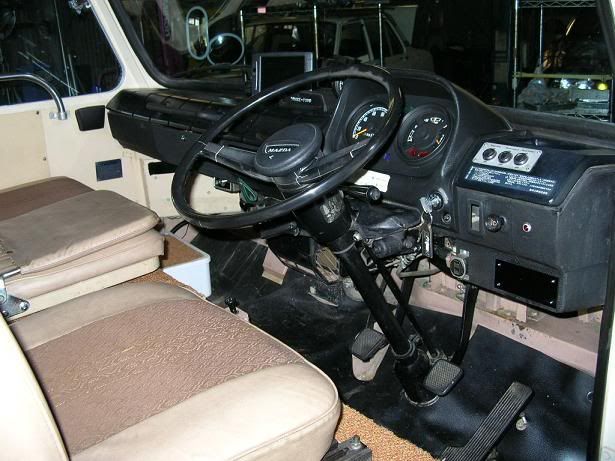

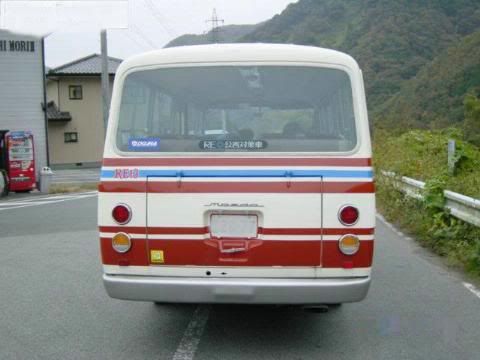

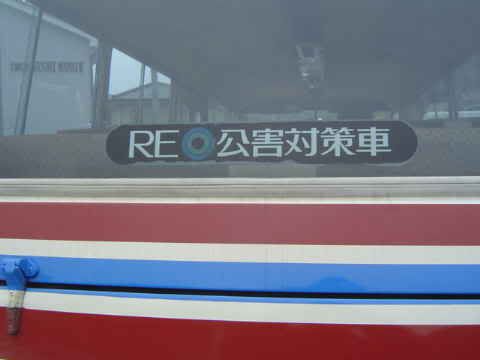

After the body work...

_________________
rotorking
Mazda RX2 S122A S2
http://rx2re.weebly.com


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Thu Mar 29, 2012 5:00 pm
User avatar

Joined: Tue Nov 29, 2011 8:56 pm
Posts: 3
Location: ontario
That is by far the most amazing bus I have ever seen. Excellent find! :tu:


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Thu Mar 29, 2012 5:36 pm

Joined: Thu Jun 12, 2008 4:28 pm
Posts: 142
Location: Tampa FL
:tu: Amazing! Its Impressive that the 13B can manage to power a vehicle of that size


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Fri Mar 30, 2012 3:35 am
User avatar

Joined: Thu Jun 17, 2010 5:34 am
Posts: 76
Location: Brisbane, Australia
RX-2Fan wrote:
:tu: Amazing! Its Impressive that the 13B can manage to power a vehicle of that size


It couldn't really! :oops: That's why only 44 were ever made! 8)

Cheers,
Danny

_________________
L10A
L10B
KPDA
KRBB
KTBA
M13P
TVA
VA


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Fri Mar 30, 2012 3:48 am
User avatar

Joined: Mon Feb 22, 2010 1:52 am
Posts: 22
Location: new zealand
Hey these are two different vehicle's if you look closely :? , the paint work ,smashed intercater lense ,rusting on the bumper .
In the first picture that bus looks fucked the metal work involved
would be :x

[quote="jdm_master"]Here's the bus when it was found...

_________________
Wanted mazda 1300 4 door wagon parts NOS /SH


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Fri Mar 30, 2012 7:15 am

Joined: Tue Nov 08, 2011 2:19 pm
Posts: 104
Location: texas
first - glad to see a fellow Trini on here!!! nice find too it seems to look a lot like the Mid 80's nissan civillian bus we had in Trinidad.

second - after looking at the pics i saw a few details that agree with the statement above.


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Fri Mar 30, 2012 2:59 pm
User avatar

Joined: Fri Nov 25, 2011 7:14 am
Posts: 55
Location: Diego Martin, Trinidad W.I.
The first one was one that was actually spotted and not the one in the other pics i should have mentioned lol my bad...The first one is one of the four i mentioned that still exsist in Japan but not road worthy...bless up

10psitx what's up bro...

_________________
rotorking
Mazda RX2 S122A S2
http://rx2re.weebly.com


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Fri Mar 30, 2012 3:05 pm
User avatar

Joined: Fri Nov 25, 2011 7:14 am
Posts: 55
Location: Diego Martin, Trinidad W.I.

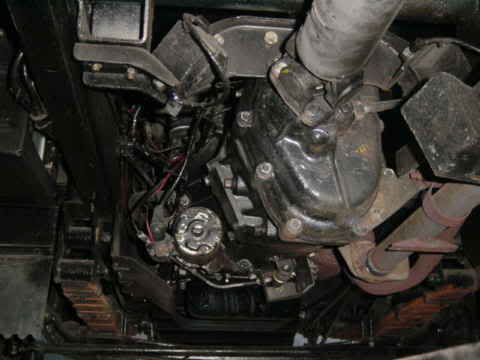

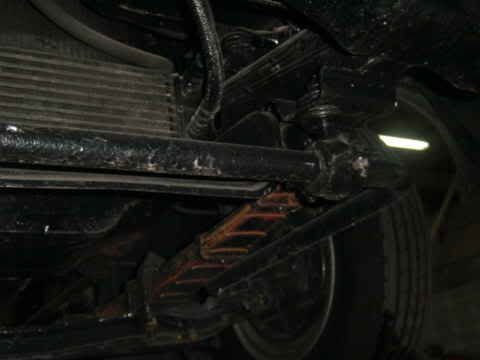

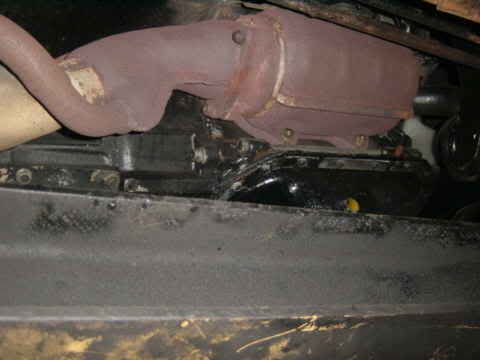

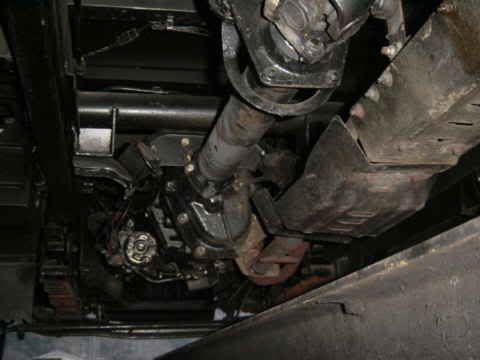

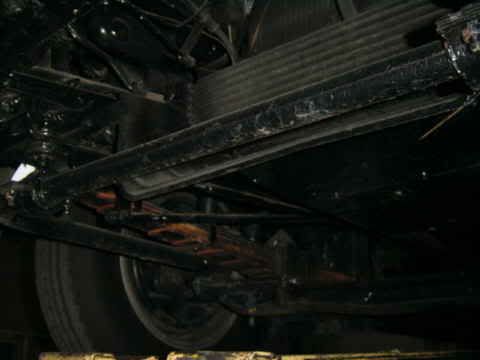

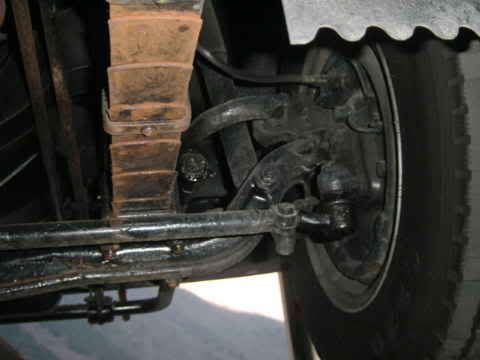

Here's a few under body pics of the 13L...

_________________
rotorking
Mazda RX2 S122A S2
http://rx2re.weebly.com


Top
 Profile

 Post subject: Re: The Mazda (TA13L) Parkway Rotary 26 Bus
PostPosted: Tue Apr 03, 2012 9:09 am

Joined: Tue Nov 08, 2011 2:19 pm
Posts: 104
Location: texas
10psitx what's up bro...[/quote]


i jus cool bro!!!
